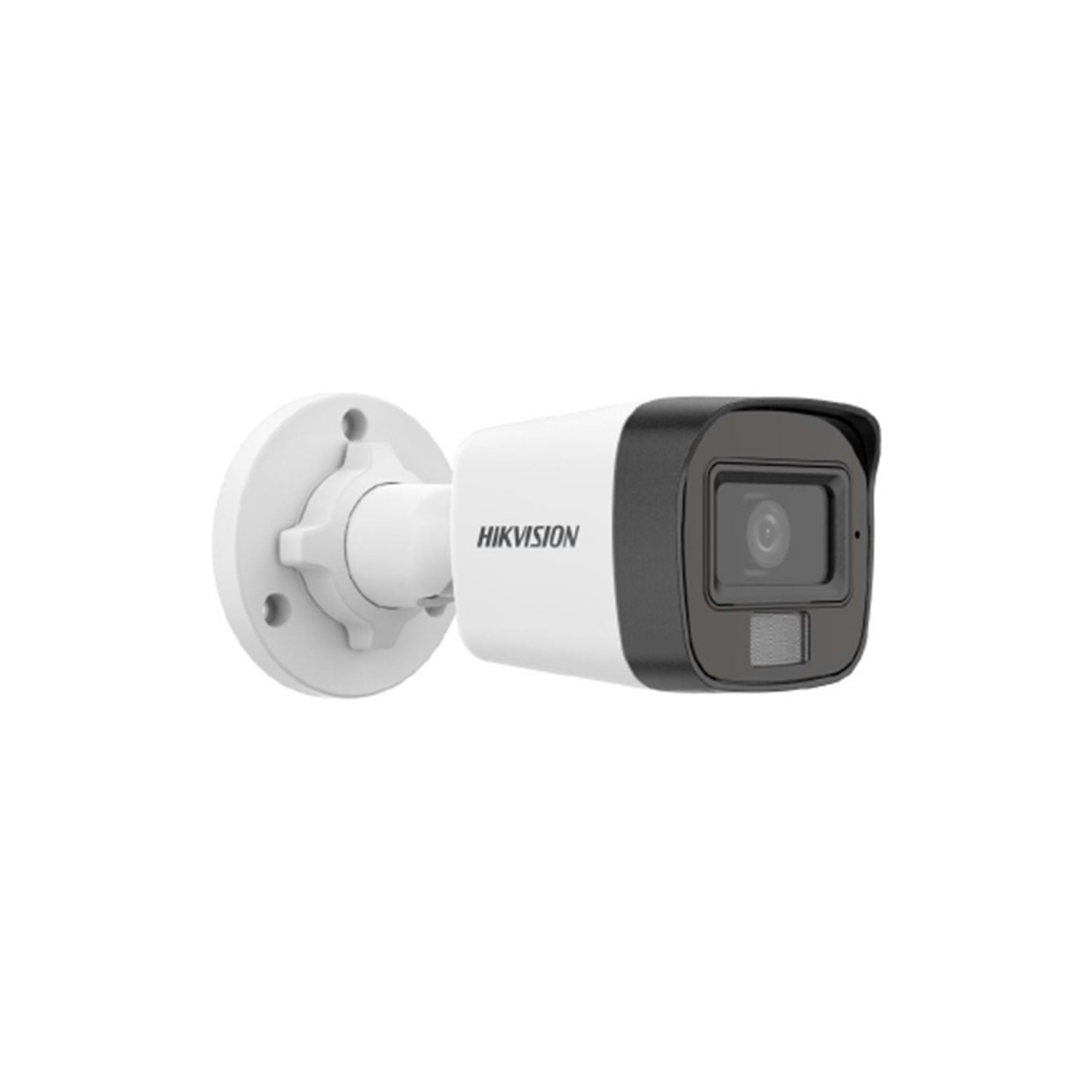

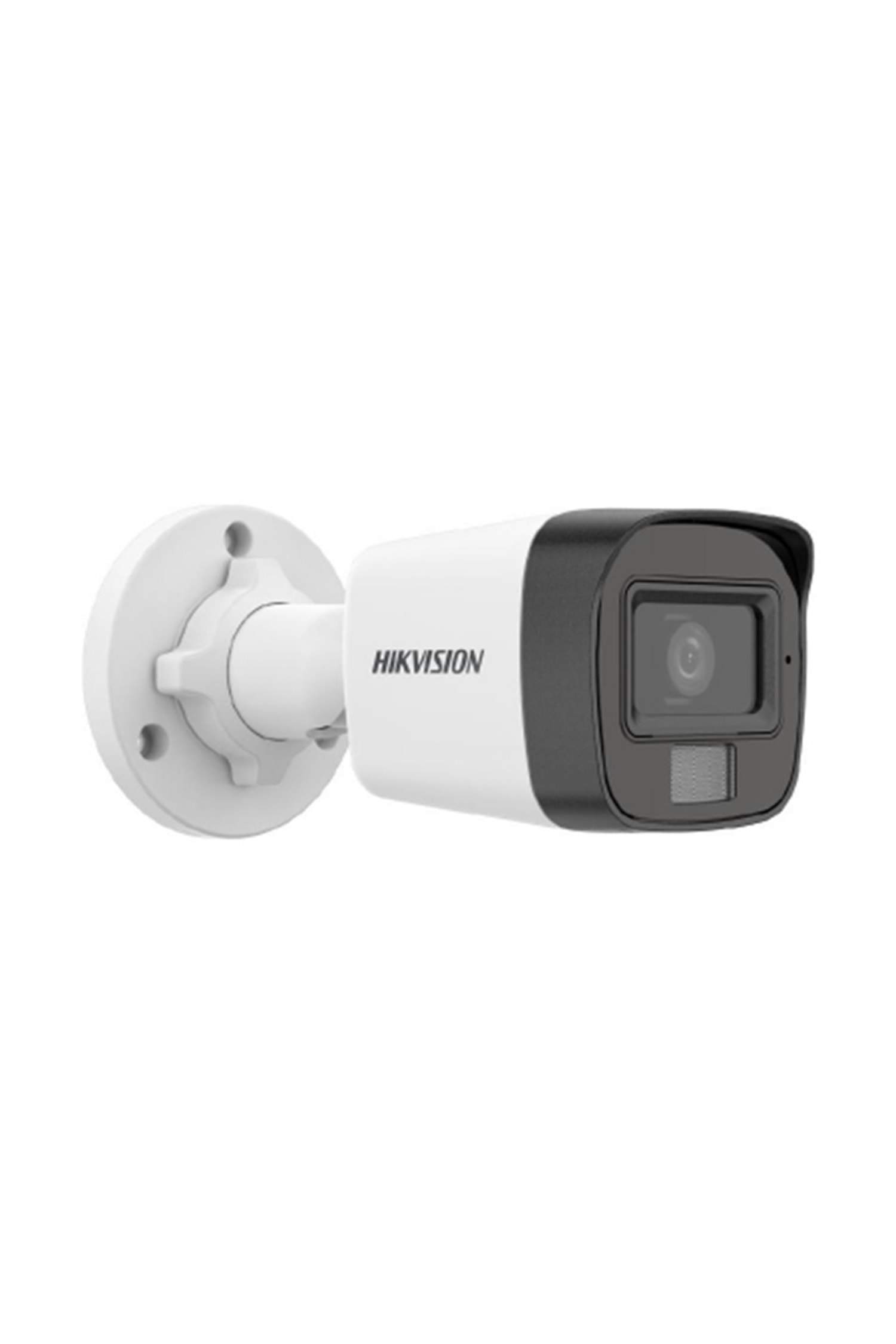

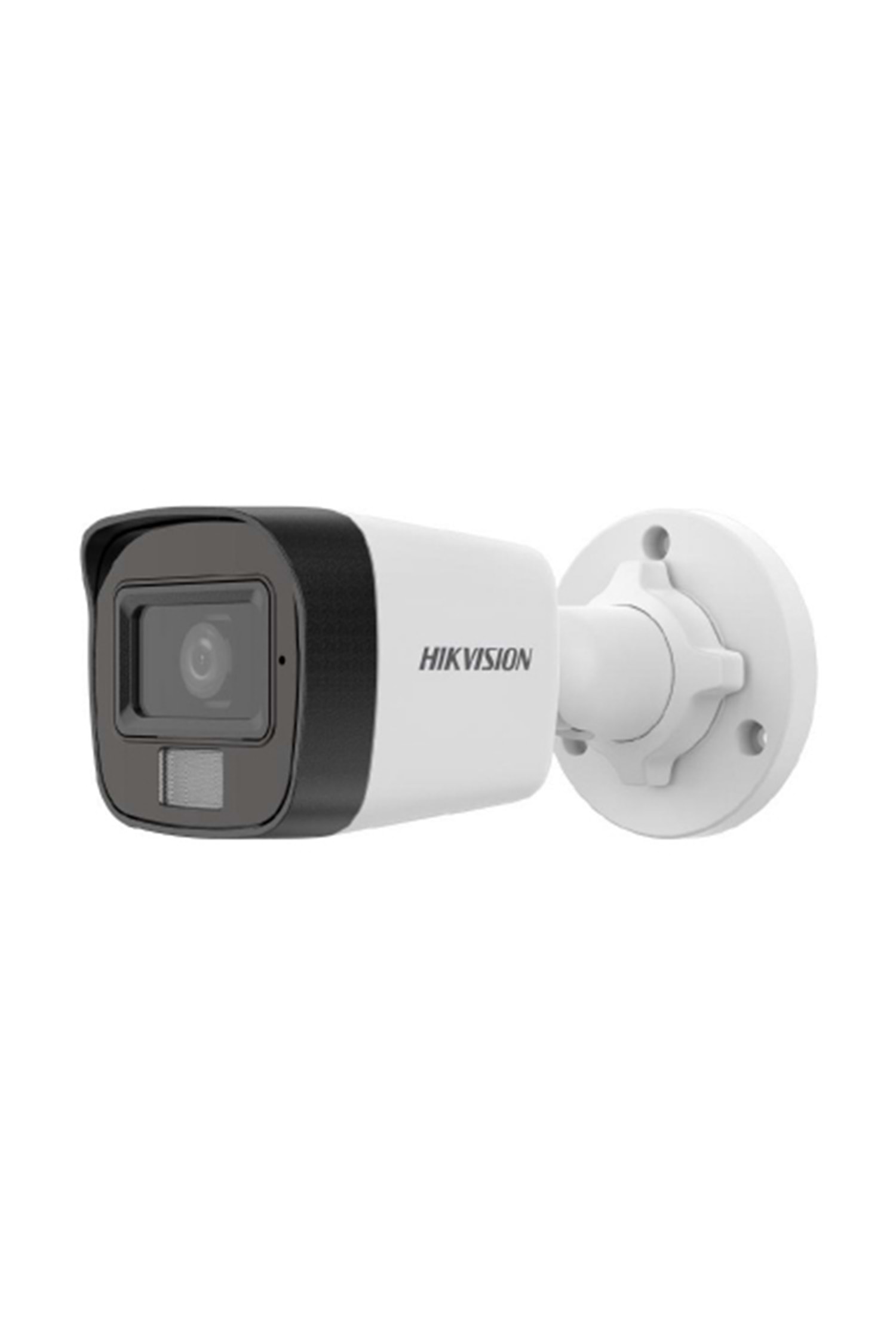

Hikvision DS-2CD1021G2-LIUF Sabit Lens 2.8 mm 2mp Ir Bullet Ip Kamera

Kamera
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°

4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens Mount M12
Iris Type Fixed
Aperture F2.2

DORI
DORI

2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type IR,White Light
Supplement Light Range

IR: up to 20 m

White Light: up to 15 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP
User/Host

Up to 32 users

3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR) Digital WDR
SNR ? 52 dB
Privacy Mask 1 programmable polygon privacy mask
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage

NA
Built-in Microphone Yes,1 built-in microphone
Reset Key

NA

Event
Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
Linkage Notify surveillance center, send email, trigger capture;Notify surveillance center, send email, trigger recording, trigger capture

General
Power

12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Plastic
Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.5" × 2.4" × 2.3")
Package Dimension 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
Weight Approx. 175 g (0.4 lb.)
With Package Weight Approx. 250 g (0.55 lb.)
Storage Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
