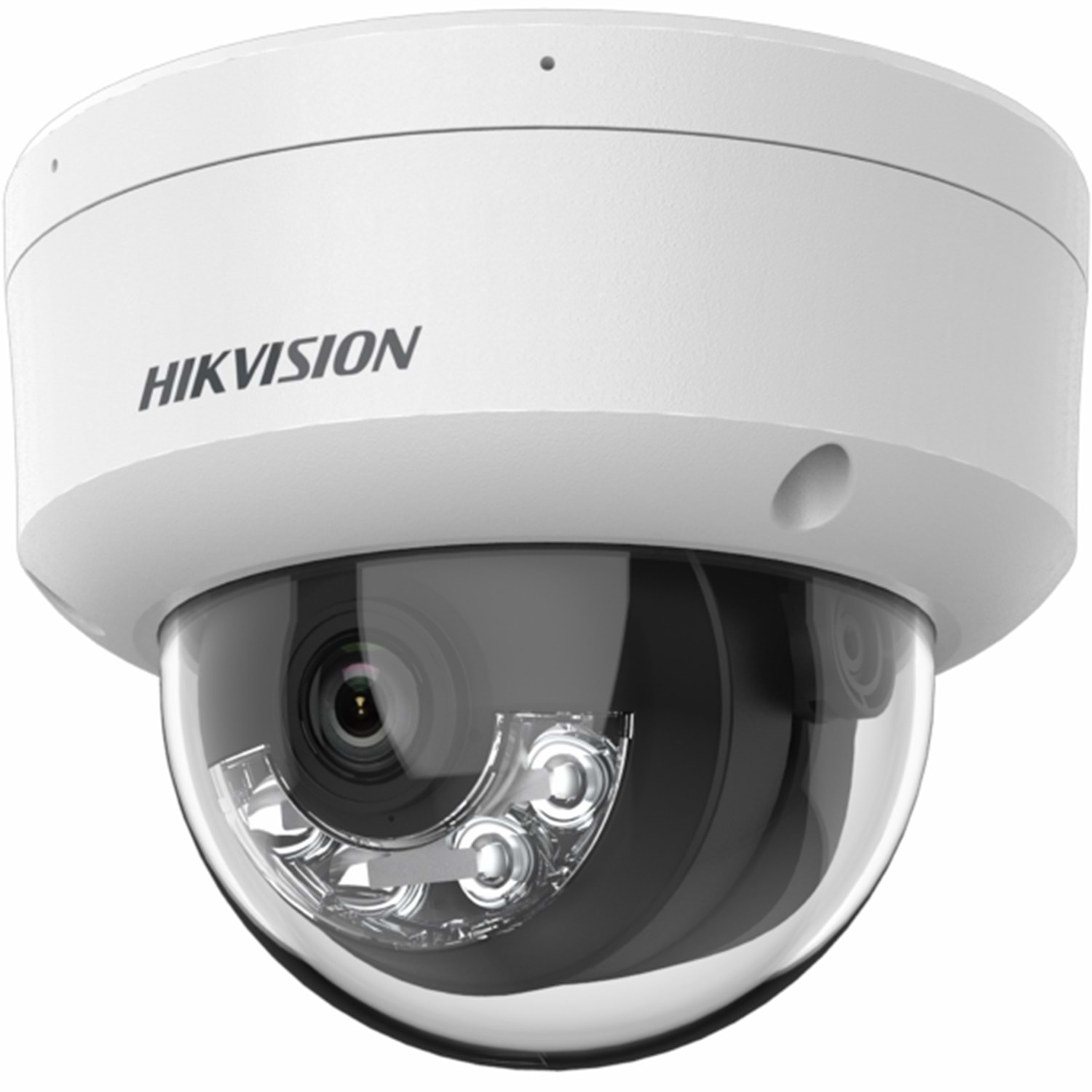

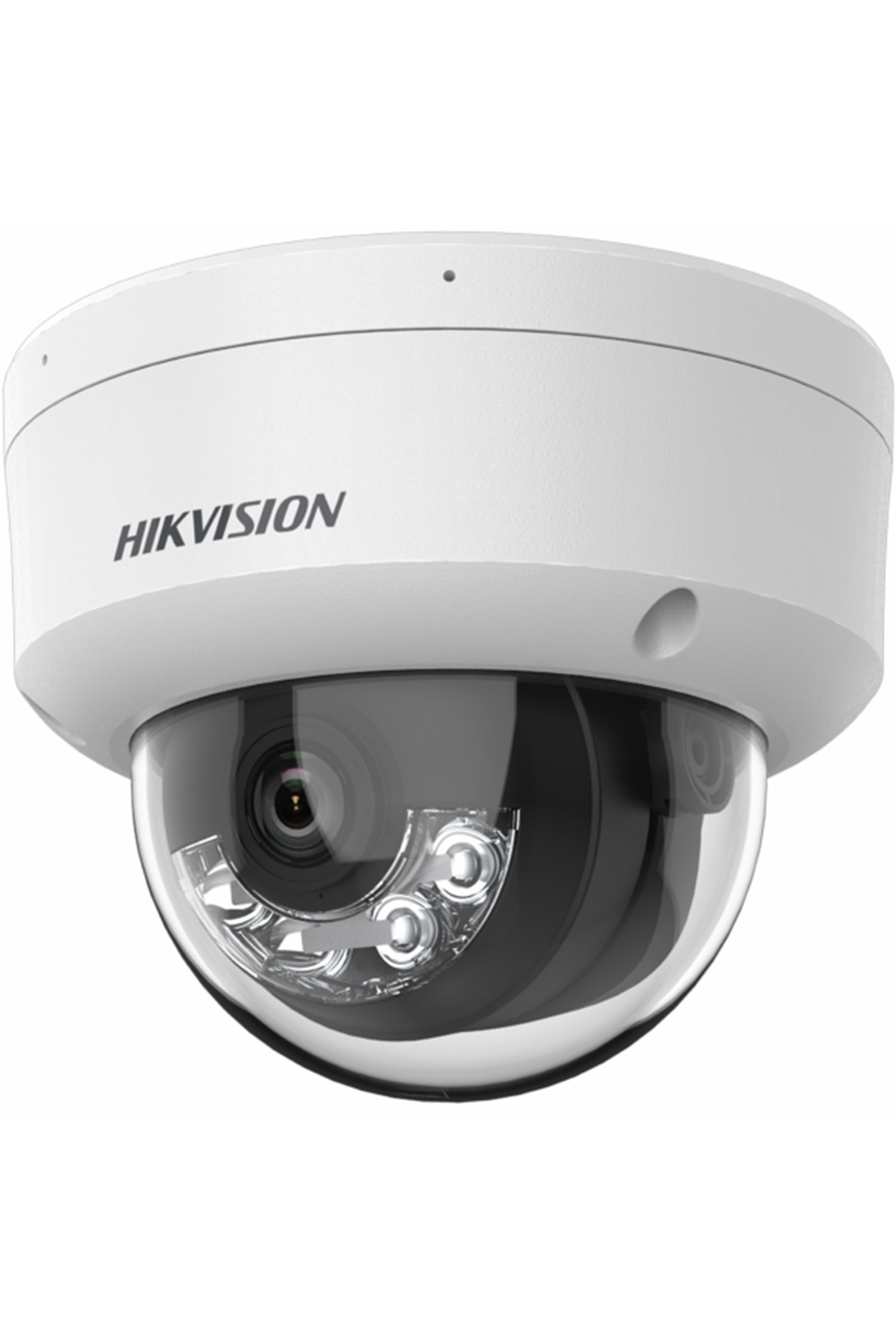

HIKVISION DS-2CD1121G2-LIU(F) 2MP Smart Hybrid Light Fixed Dome Network Camera

Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens MountM12
Iris TypeFixed
ApertureF1.6

DORI
DORI

2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
User/Host

Up to 32 users

3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect
Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)Digital WDR
SNR? 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes
Reset Key-F: Yes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W
MaterialMetal & Plastic
DimensionØ121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 550 g (1.2 lb.)
With Package WeightApprox. 800 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7
Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK08: IEC 62262:2002

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
