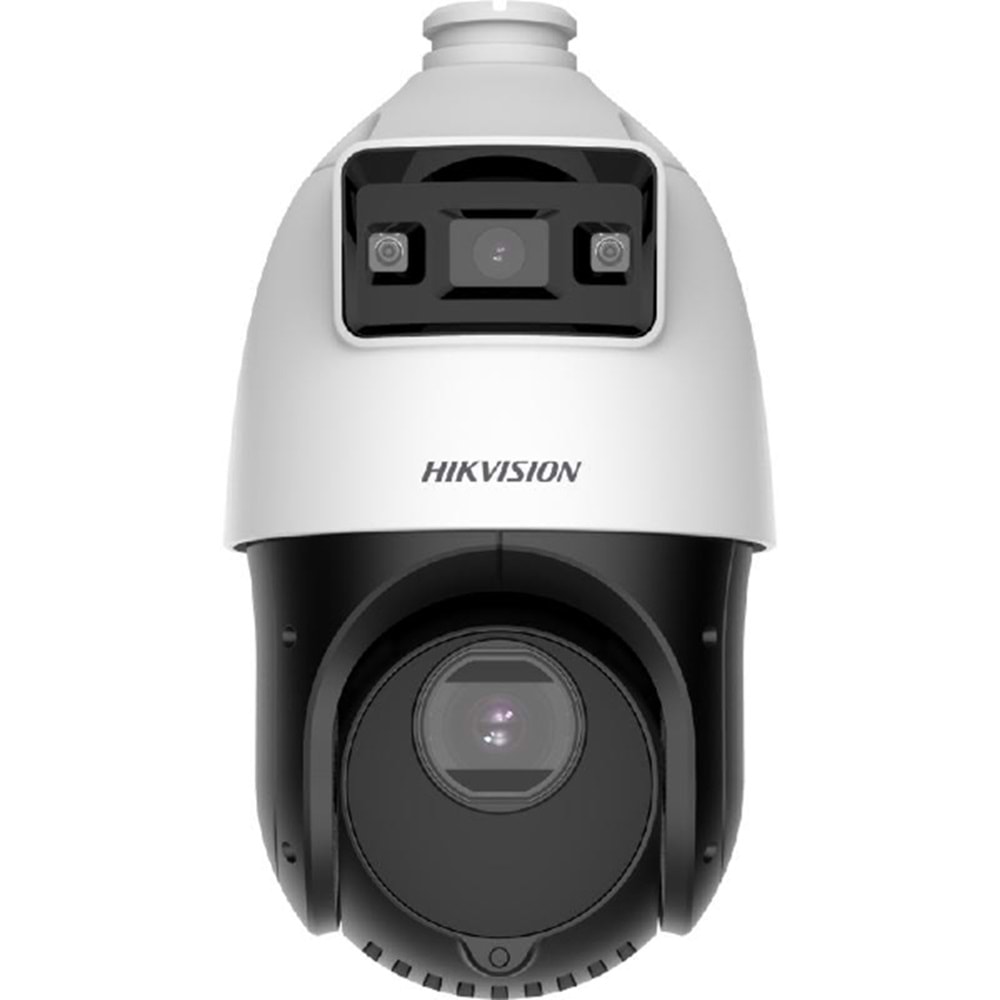

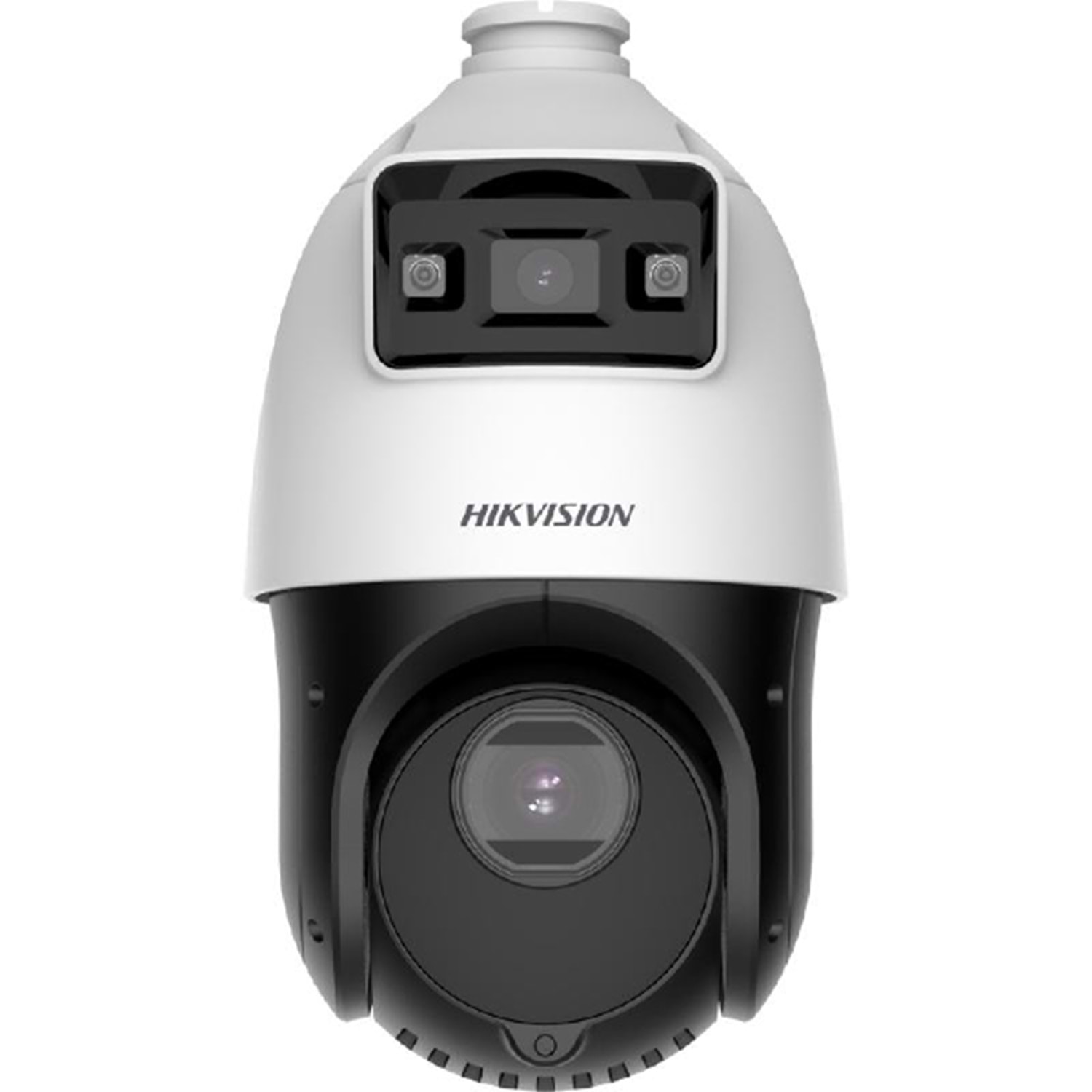

HIKVISION DS-2SE4C425MWG-E/14(F0) 1/3 PS CMOS 4MP 25X Optik Zoom 2.8mm -120mm TandemVu SpeedDome IP GÜvenlik Kamerası

Ayak Ayrıca Satılır
Gece Görüş Mesafesi 100 Metre
Kamera Tipi TandemVu SpeedDome
Kullanım yeri Dış Mekan
Lens 25X Optik Zoom 2.8mm -120mm
Marka HIKVISION
Sensör 1/3
Sensör Tipi PS CMOS
Sıkıştırma Formatı H.265+/H.265/H.264+/H.264
Sistem Uyumluluğu ONVIF
TV - Line 4MP
Ürün IP GÜvenlik Kamerası
Ürün Kodu DS-2SE4C425MWG-E/14(F0)
Zoom 25X
HIKVISION DS-2SE4C425MWG-E/14(F0) 1/3 PS CMOS 4MP 25X Optik Zoom 2.8mm -120mm TandemVu SpeedDome IP GÜvenlik Kamerası
TandemVu 4-inch 4 MP 25X Colorful & IR Network Speed Dome Captures a large area and great details at the same time High quality imaging with 4 MP resolution Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology Secures an expansive area with 25× optical zoom and 16× digital zoom Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus Expansive night view with up to 100 m IR distance & 30 m white light Supports 12V DC & PoE+ Focuses on human and vehicle targets classification based on deep learning Kamera Image Sensor [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS Max. Resolution [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 Min. Illumination [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed 1 s to 1/30,000 s Day & Night ICR Zoom [PTZ channel] 25 × optical, 16 × digital Slow Shutter yes Lens Focal Length [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical FOV [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°,Diagonal field of view: 113.3°; [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele) Focus semi-auto||manual||auto Aperture [Bullet channel]: F1.0; [PTZ channel]: F1.6 Zoom Speed [PTZ channel]: approx. 3.6 s Illuminator Supplement Light Type [PTZ channel]: IR; [Bullet channel]: White Light Supplement Light Range [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m Smart Supplement Light Yes PTZ Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s Proportional Pan yes Presets 300 Preset Freezing yes Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Park Action preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan 3D Positioning yes PTZ Status Display yes Scheduled Task preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output Power-Off Memory yes Video Main Stream [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream [Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream [Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Compression H.265||H.264||MJPEG Video Bit Rate 32 kbps to 16384 kbps H.264 Type baseline profile||main profile||high profile H.265 Type main profile Scalable Video Coding (SVC) yes Region Of Interest (ROI) 8 fixed regions for each stream Audio Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC Audio Bit Rate 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC) Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz Environment Noise Filtering yes Network Protocols IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets Simultaneous Live View 20 API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP User/Host 32 Security Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter Network Storage NAS (NFS, SMB/ CIFS)|| ANR Client iVMS-4200||Hik-Connect Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+ Image Image Parameters Switch Yes Image Settings sharpness, saturation, brightness, contrast Day/Night Switch day, night, auto, scheduled-switch Wide Dynamic Range (WDR) 120 dB SNR ? 52 dB Defog Digital defog Image Stabilization EIS Image Enhancement BLC,HLC,3D DNR Privacy Mask [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable Regional Focus Yes Regional Exposure Yes Interface Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port On-Board Storage Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB Audio 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 ? Alarm 1 alarm input, 1 alarm output SIFIRLA yes Event Basic Event [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot) Smart Event [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection Linkage [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Deep Learning Function Face Capture [Bullet channel] no,[PTZ channel] yes General Power 12VDC, PoE+ Dimension Ø 166 mm × 375 mm (Ø 6.5" × 14.7") Weight Approx. 2.4 kg (13.2 lb.) Material ADC12 Operating Condition -30? to 65? (-22°F to 149°F) ||humidity lower than 90%RH General Function mirror,password protection,watermark,IP address filter Demist Demist by heating the glass Power Consumption And Current Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light Approval Protection IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
