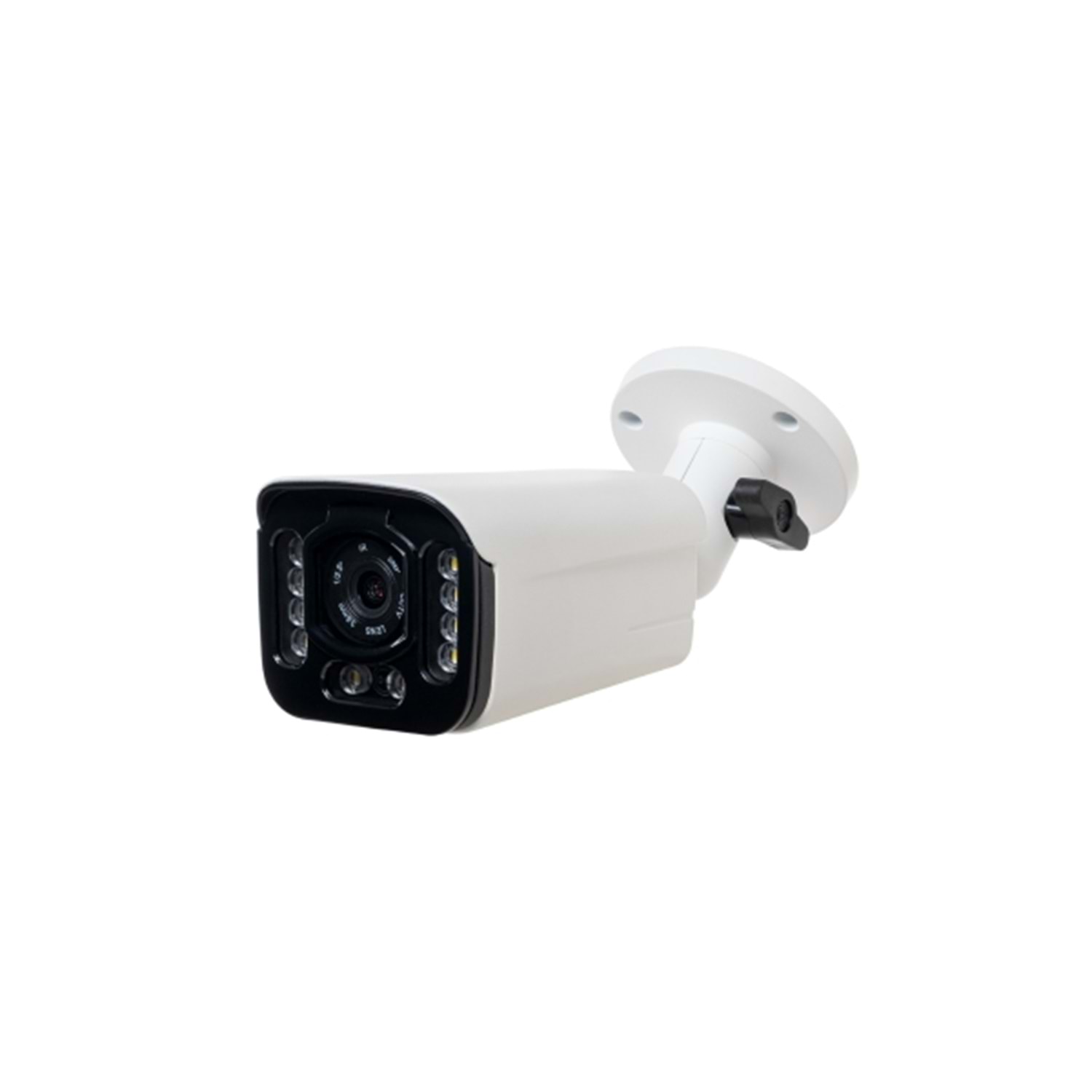

ALOSAT IP 8MP P8-9469ESMW10 2,8MM Bullet METAL KASA 4K 8MP Gece Renkli 10 Warm Light LED H.265 Dahili ses PoE

Detailed Definition

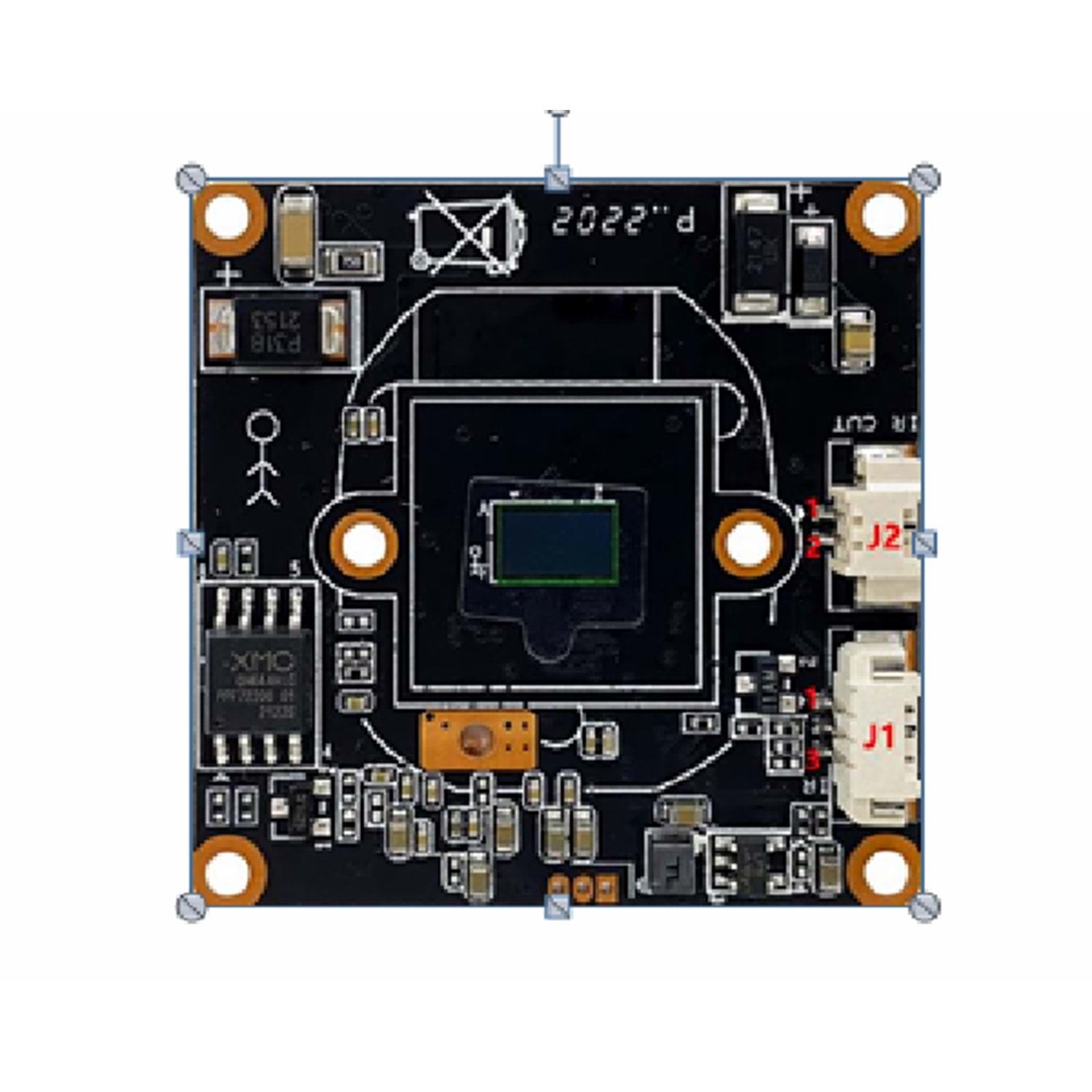

Front
	J1 (3PIN 1.25mm pitch socket, infrared control interface)
	1		PWM (Warm light control signal)
	2		CDS (Ordinary infrared light board interface)
	3		IRC (Infrared control signal output)
	J2 (2PIN 1.25mm pitch socket, IR_CUT interface)
	1		IR-CUT-A (black line)
	2		IR-CUT-B (red line)

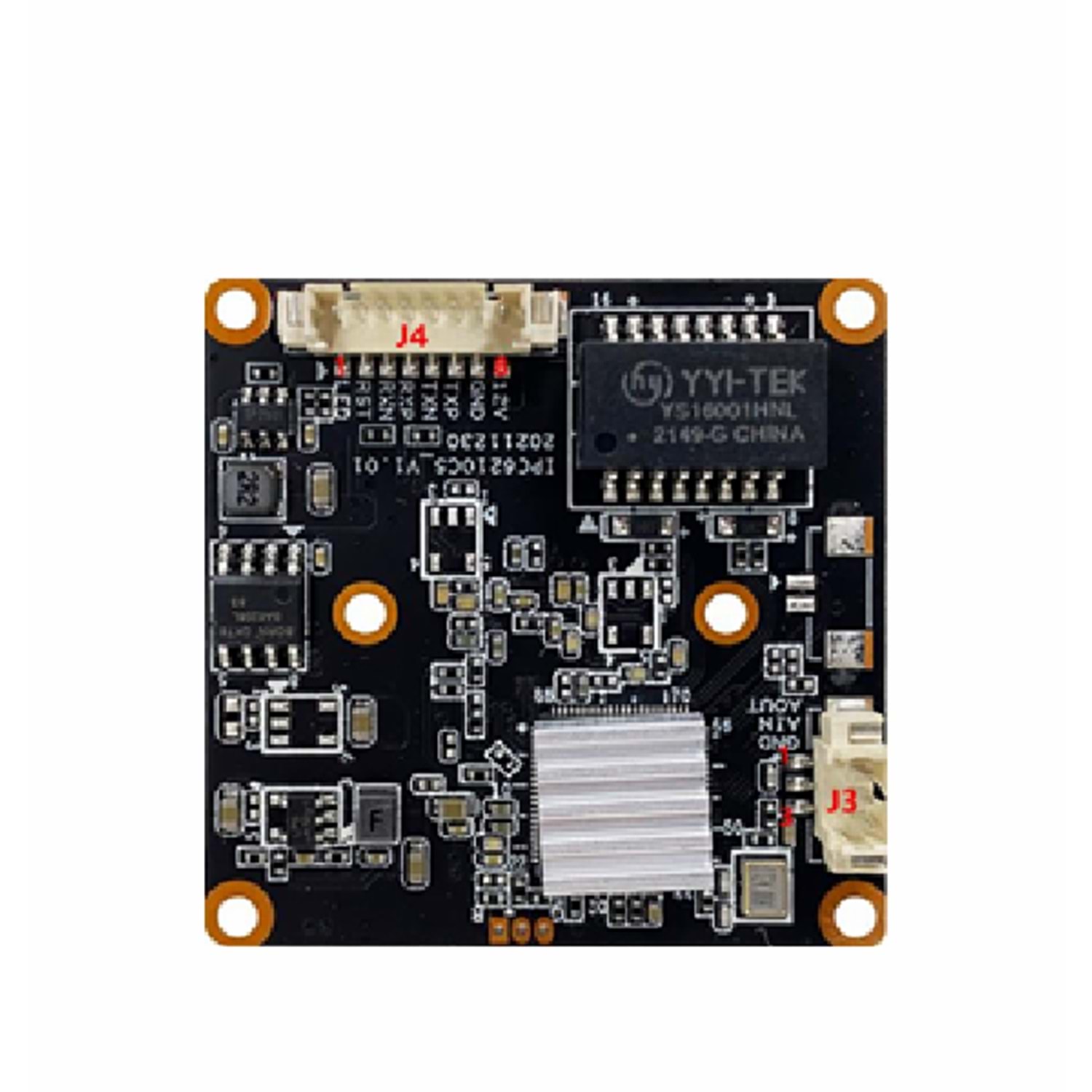

Reverse
	J3 (2PIN 1.25mm pitch socket, audio interface)
	1	AUDIO_OUT
	2	AUDIO_IN
	3	GND
	J4 (8PIN 1.25mm pitch socket, power input and network interface)
	1	LED1 (Tail line ACT light)
	2	Reset
	3	RJ6 (Rx- Receive Data-)
	4	RJ3 (Rx+ Receive Data+)
	5	RJ2 (Tx- Tranceive Data-)
	6	RJ1 (Tx+ Tranceive Data+)
	7	GND
	8	DC 12V

Other matters: The content in this manual is only to provide guidance for users. Our company will update the content of this manual according to the enhancement or change of product functions, and will regularly improve and update the software functions described in this manual. The updated content will be It is stated in the new version of the manual without notice.

Alarm data transmission	FTP, E-mail, browser, management software
Protocol support	TCP/IP,RTSP,RTMP,RTP,HTTP,DNS,DDNS,DHCP,FTP,NTP,UPNP
ONVIF protocol	Standard ONVIF protocol
Client browsing	Client browsing supports IE8.0 and above (device embedded Web Server), Edge,Chrome,Safari browser browsing
Mobile client	Support iOS, Android platforms
Audio format	G.711A
Audio input	1 audio input
Audio output	1 audio output
Powered by	DC12V
Equipment power	Bare board 1.5W (MAX)
Dimension	38(L) * 38(W)
IR-CUT hole distance	20mm
Equipment weight	0.1 kg

Features

Fullhan FH8852V310 chip;

8MP pixels, 1/3" target surface, standard,38mm*38mm board;

Support H.264/H.265, dual stream (main stream and

auxiliary stream) output;

Support IE, Edge,Chrome,Safari browser browsing;

Support audio input and output, realize video monitoring;

Support inductive infrared day and night switching to

achieve 24-hour monitoring;

Supports humanoid detection, vehicle detection, and trip wire perimeter detection;

Support many protocols such as onvif protocol and Hikvision

private protocol, and can access many large-scale platform

management systems at home and abroad;

Support mobile phone monitoring (iOS, Android),

Web terminal, VMS monitoring;

Support PoE power supply (optional);

Parameters

Module	IPC7453ES-SS
Main chip	FH8852V310
Sensor	8MP pixel , 1/3″ CMOS sensor
Encoding format	H.264, H.265 encoding, support dual stream
Maximum frame rate	PAL:8M:25fps/s;4M:25fps/s; 2M:25fps/s NTSC:5M:30fps/s;4M:30fps/s;2M:30fps/s
Image Resolution	Main stream: 28801620,25601440,19201080 Auxiliary stream: 704576,640480,352288 Snap stream: 704576,640480,352*288
Subtitle overlay	Support channel name, date and time overlay, overlay position is adjustable
