Detailed Definition

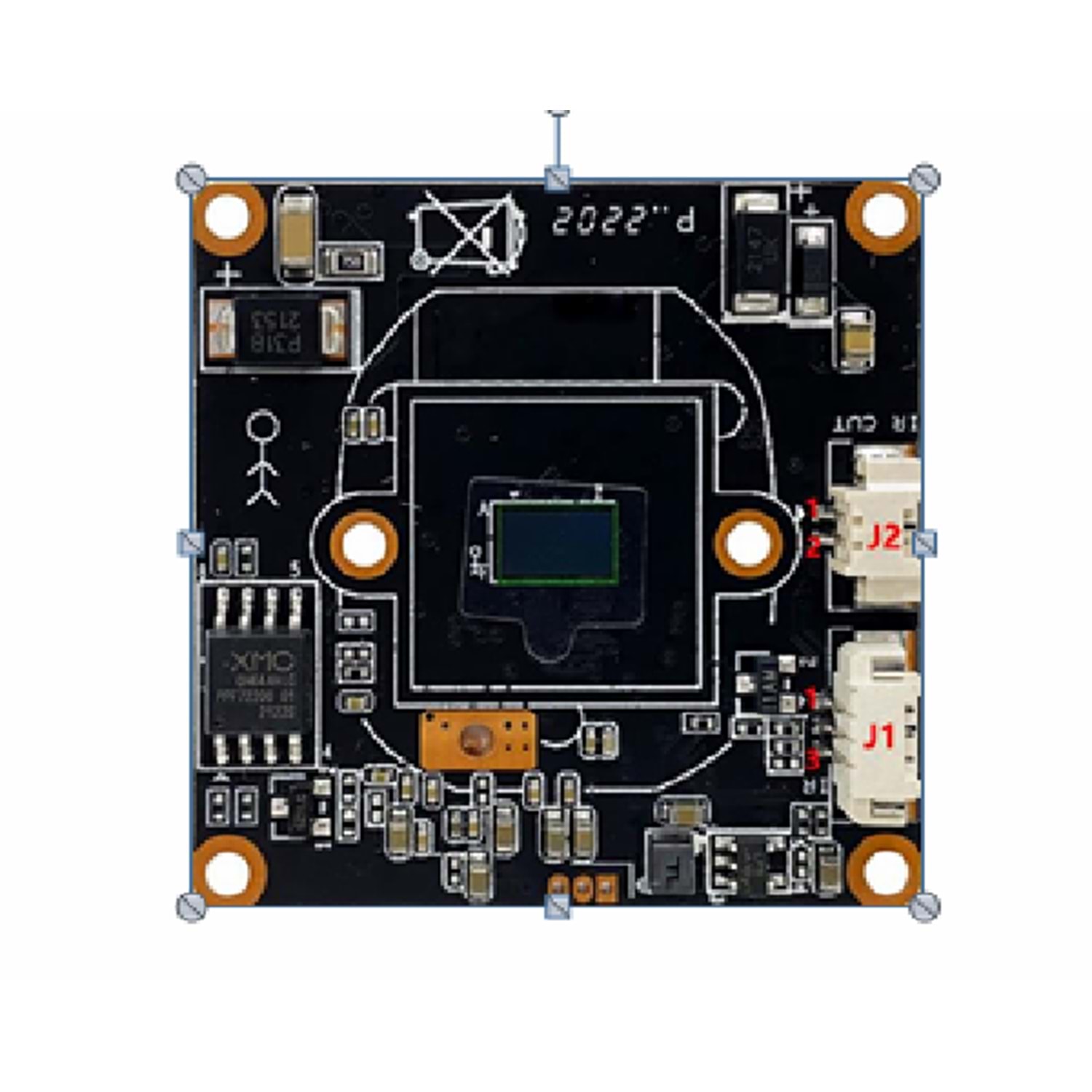

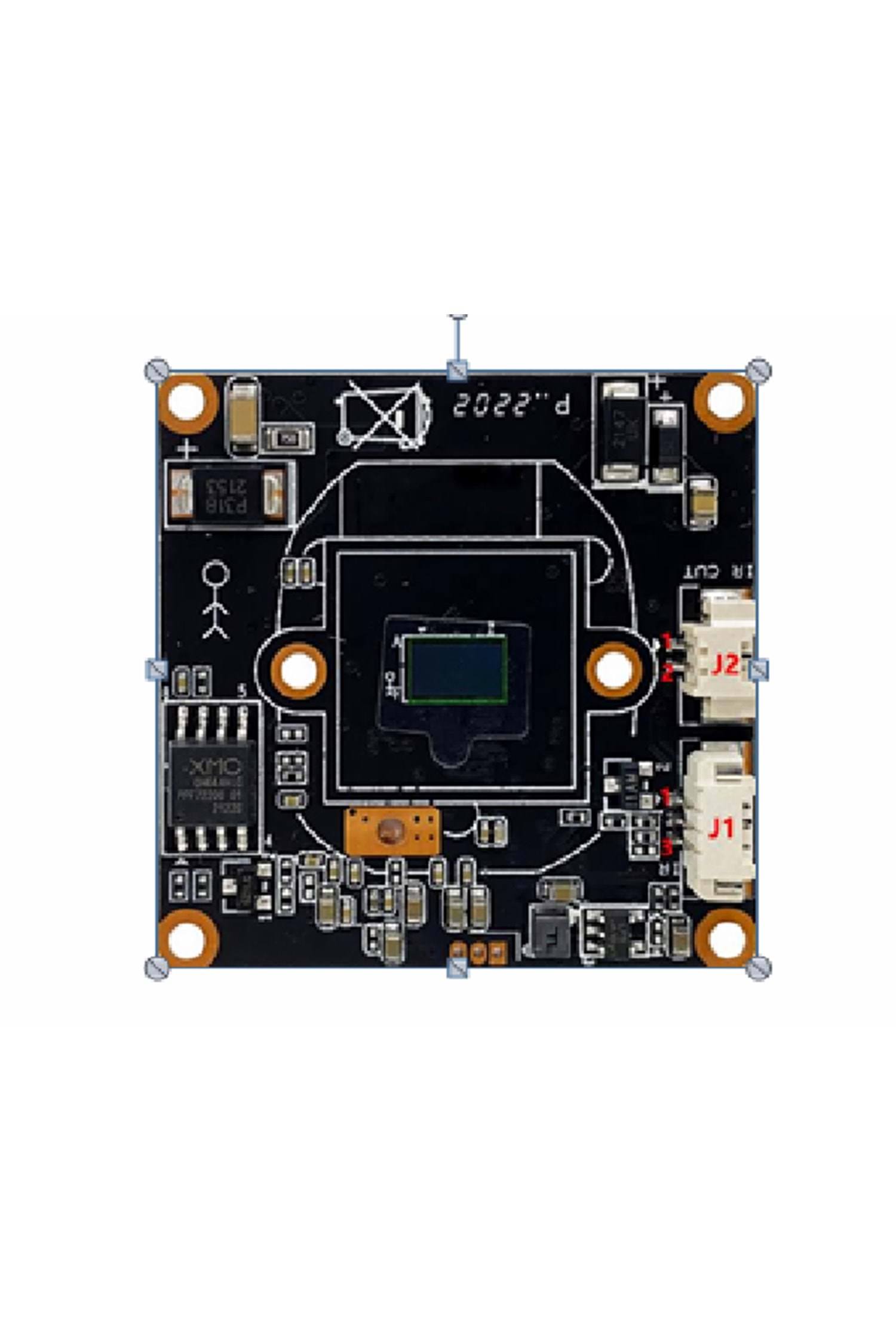

Front
|
|
J1 (3PIN 1.25mm pitch socket, infrared control interface)
|
1
|
PWM (Warm light control signal)
|
2
|
CDS (Ordinary infrared light board interface)
|
3
|
IRC (Infrared control signal output)
|
J2 (2PIN 1.25mm pitch socket, IR_CUT interface)
|
1
|
IR-CUT-A (black line)
|
2
|
IR-CUT-B (red line)
|
|
|

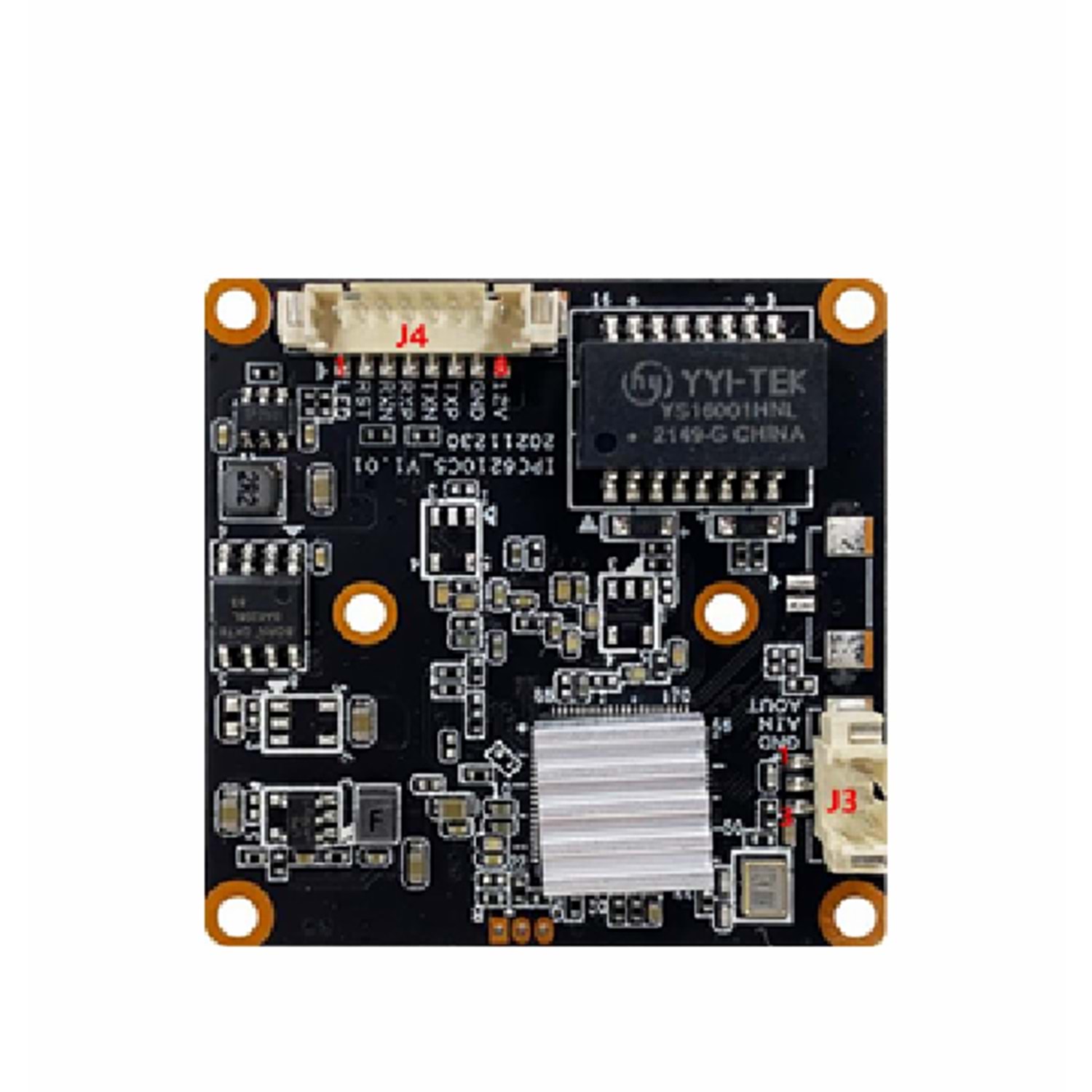

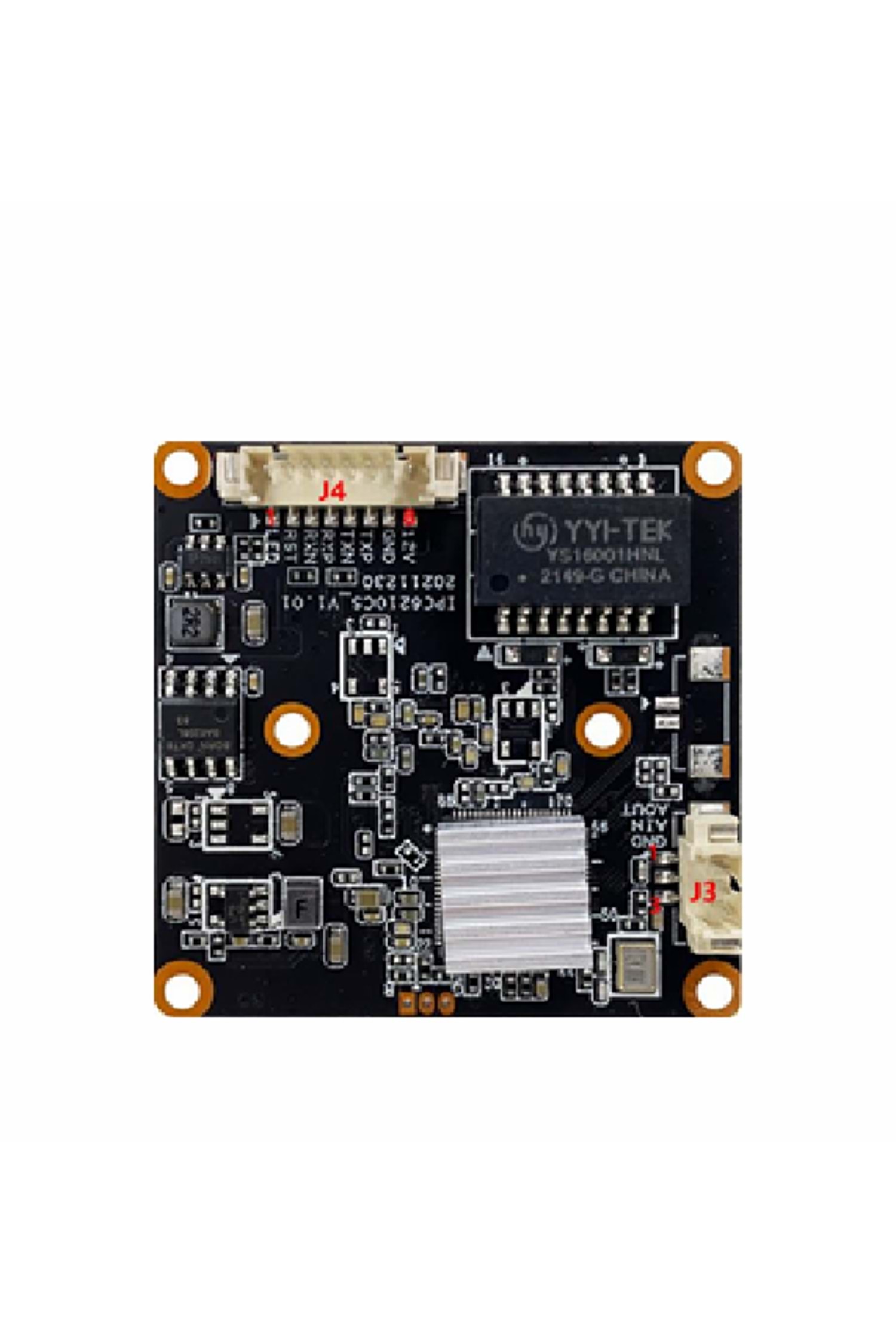

Reverse
|
|
J3 (2PIN 1.25mm pitch socket, audio interface)
|
1
|
AUDIO_OUT
|
2
|
AUDIO_IN
|
3
|
GND
|
J4 (8PIN 1.25mm pitch socket, power input and network interface)
|
1
|
LED1 (Tail line ACT light)
|
2
|
Reset
|
3
|
RJ6 (Rx- Receive Data-)
|
4
|
RJ3 (Rx+ Receive Data+)
|
5
|
RJ2 (Tx- Tranceive Data-)
|
6
|
RJ1 (Tx+ Tranceive Data+)
|
7
|
GND
|
8
|
DC 12V
|
| | | |
Other matters: The content in this manual is only to provide guidance for users. Our company will update the content of this manual according to the enhancement or change of product functions, and will regularly improve and update the software functions described in this manual. The updated content will be It is stated in the new version of the manual without notice.
Alarm data transmission
|
FTP, E-mail, browser, management software
|
Protocol support
|
TCP/IP,RTSP,RTMP,RTP,HTTP,DNS,DDNS,DHCP,FTP,NTP,UPNP
|
ONVIF protocol
|
Standard ONVIF protocol
|
Client browsing
|
Client browsing supports IE8.0 and above (device embedded Web Server), Edge,Chrome,Safari browser browsing
|
Mobile client
|
Support iOS, Android platforms
|
Audio format
|
G.711A
|
Audio input
|
1 audio input
|
Audio output
|
1 audio output
|
Powered by
|
DC12V
|
Equipment power
|
Bare board 1.5W (MAX)
|
Dimension
|
38(L) * 38(W)
|
IR-CUT hole distance
|
20mm
|
Equipment weight
|
0.1 kg
|
Features
- Fullhan FH8852V310 chip;
- 8MP pixels, 1/3" target surface, standard,38mm*38mm board;
- Support H.264/H.265, dual stream (main stream and
auxiliary stream) output;
- Support IE, Edge,Chrome,Safari browser browsing;
- Support audio input and output, realize video monitoring;
- Support inductive infrared day and night switching to
achieve 24-hour monitoring;
- Supports humanoid detection, vehicle detection, and trip wire perimeter detection;
- Support many protocols such as onvif protocol and Hikvision
private protocol, and can access many large-scale platform
management systems at home and abroad;
- Support mobile phone monitoring (iOS, Android),
Web terminal, VMS monitoring;
- Support PoE power supply (optional);
Parameters
Module
|
IPC7453ES-SS
|
Main chip
|
FH8852V310
|
Sensor
|
8MP pixel , 1/3″ CMOS sensor
|
Encoding format
|
H.264, H.265 encoding, support dual stream
|
Maximum frame rate
|
PAL:8M:25fps/s;4M:25fps/s; 2M:25fps/s
NTSC:5M:30fps/s;4M:30fps/s;2M:30fps/s
|
Image Resolution
|
Main stream: 2880*1620,2560*1440,1920*1080
Auxiliary stream: 704*576,640*480,352*288
Snap stream: 704*576,640*480,352*288
|
Subtitle overlay
|
Support channel name, date and time overlay, overlay position is adjustable
|
