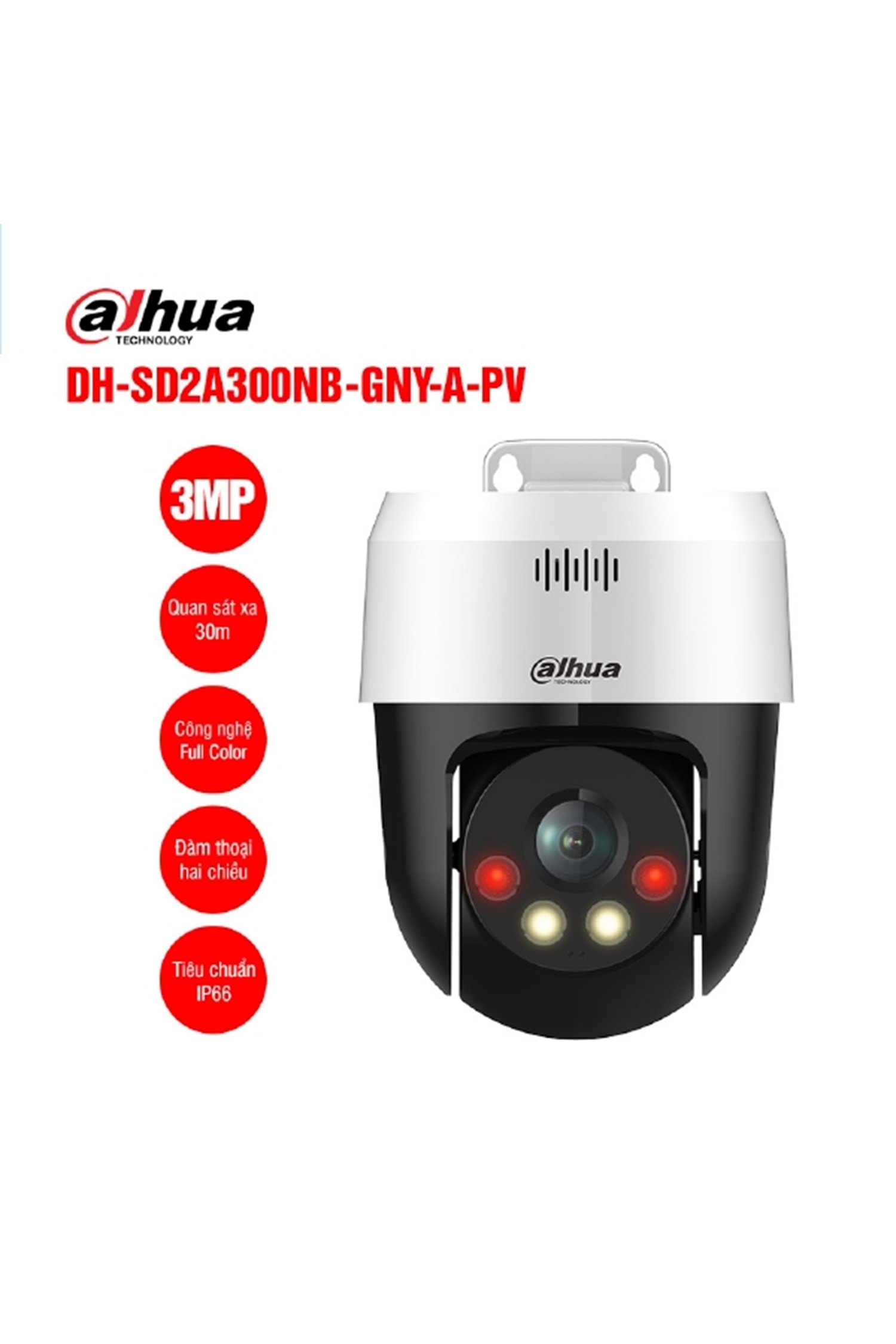

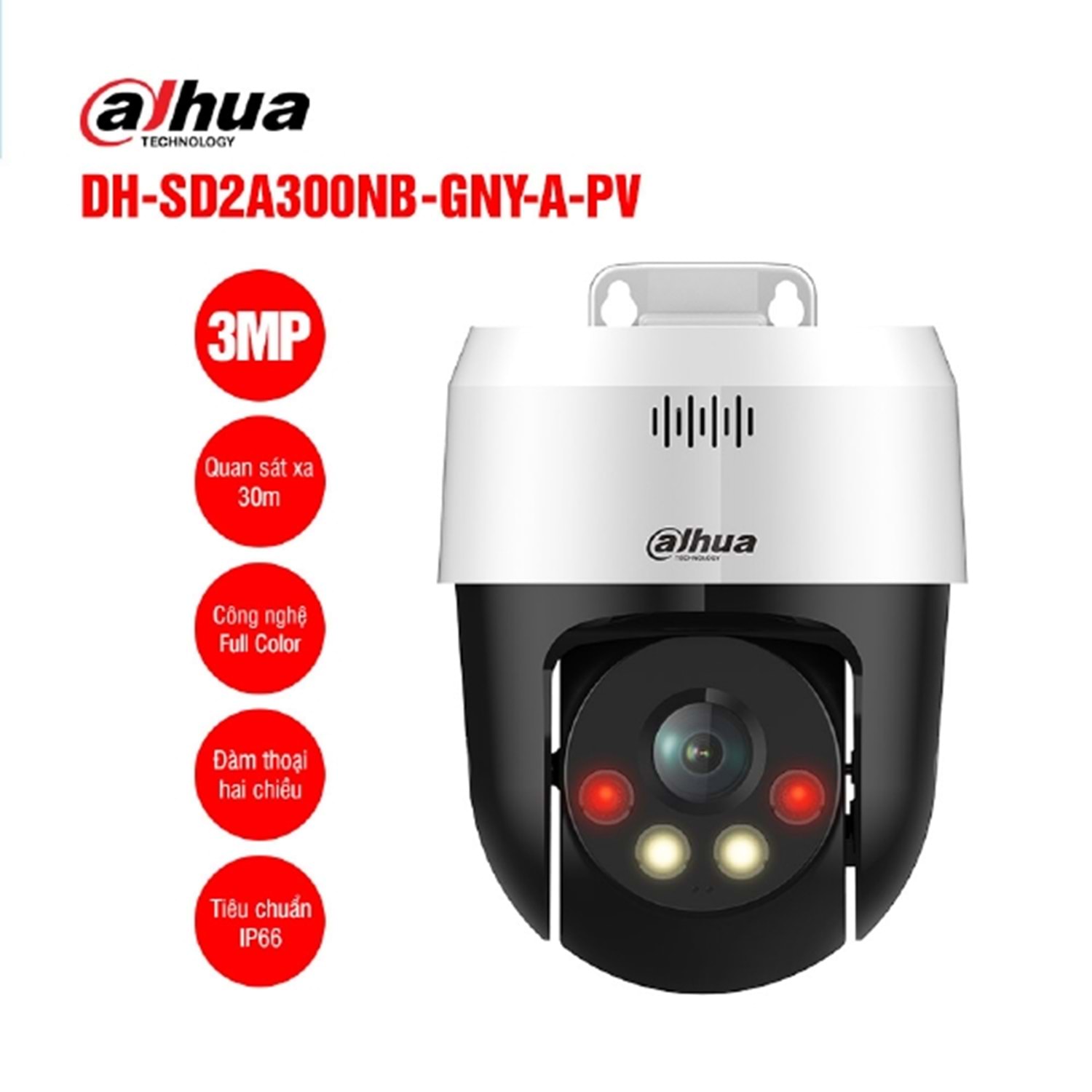

Dahua SD2A300NB-GNY-A-PV 3MP 4mm Sesli Dual Light PT IP Kamera

Camera

Image Sensor


1/2.8" CMOS

Pixel


3 MP

Max. Resolution


2304 (H) × 1296 (V)

ROM


128 MB

RAM


128 MB

Electronic Shutter Speed


1 s–1/100,000 s

Scanning System


Progressive

Min. Illumination


0.05 lux@F2.0 (Color, 30 IRE);
0.005 lux@F2.0 (B/W, 30 IRE);

Illumination Distance


4.0 mm: 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);

Illuminator On/Off Control


Manual; auto; off

Illuminator Number


2 (IR light); 2 (warm light)

Lens

Focal Length


4.0 mm

Max. Aperture


F2.0

Field of View


4.0 mm: H: 86.8°; V: 47.1°; D: 102.2°

Close Focus Distance


4.0 mm: 0.6 m (1.97 ft)

Iris Control


Fixed

DORI Distance

Lens Detect Observe Recognize Identify
4.0 mm 53.6 m
( 175.85 ft) 21.4 m
( 70.21 ft) 10.7 m
( 35.10 ft) 5.4 m
( 17.72 ft)

PTZ

Pan/Tilt Range


Pan: 0° to 345°;
Tilt: 0° to +80°

Manual Control Speed


Pan: 0.1°–74°/s;
Tilt: 0.1°–36.4°/s

Preset Speed


Pan: 0.1°–62°/s;
Tilt: 0.1°–36.3°/s

Preset


300

Power-off Memory


Yes

Idle Motion


Preset

Smart Event

IVS


Tripwire; intrusion

Human Detection


Yes

Intelligence

SMD


SMD 3.0

Active Deterrence

Light Warning


Warm light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning


Offers 1 sound alarm and 10 custom sound alarms can be imported;
Sound can be set from 0%–100%;
Play times can be set from 1-10.

Video

Video Compression


Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability


2 streams

Resolution


3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate


Main stream: 3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Bit Rate Control


CBR/VBR

Video Bit Rate


H264: 88 kbps-8,192 kbps
H265: 35 kbps-8,192 kbps

Day/Night


Auto (ICR); Color/B/W

BLC


Yes

WDR


DWDR

HLC


Yes

White Balance


Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control


Auto; manual

Noise Reduction


2D NR; 3D NR

Motion Detection


Yes

Region of Interest (RoI)


Yes

Defog


Electronic

Image Rotation


180°

Privacy Masking


4 area

S/N Ratio


?55 dB

Audio

Audio Compression


PCM;G.711a;G.711Mu;G.726;AAC;

Network

Network Port


RJ-45 (10/100 Base-T)

Network Protocol


HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP

Interoperability


CGI;SDK;ONVIF (Profile S & Profile T);RTMP;P2P

Streaming Method


Unicast/Multicast

User/Host


20 (total bandwidth: 64 M)

Storage


Micro SD card (256 GB); FTP

Browser


IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software


Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player

Mobile Client


iOS;Android

Certification

Certifications


CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-
3-2/EN55024/EN55035/EN62368-1
FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Audio Input


1 channel (built-in mic)

Audio Output


1 channel (built-in speaker)

Alarm Linkage


Capture; preset; recording; audio; sending email

Alarm Event


Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply


12 VDC/1.5 A ± 10% PoE (802.3af)

Power Consumption


Basic: 3 W;
Max: 10W (illuminator)

Power Adapter


Optional

Environment

Operating Temperature


–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity


?95%

Protection


TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof

Structure

Product Dimensions


140.5 mm × ?111.0 mm (5.53" × ?4.37")

Net Weight


0.5 kg (1.10 lb)

Gross Weight


1 kg (2.20 lb)
