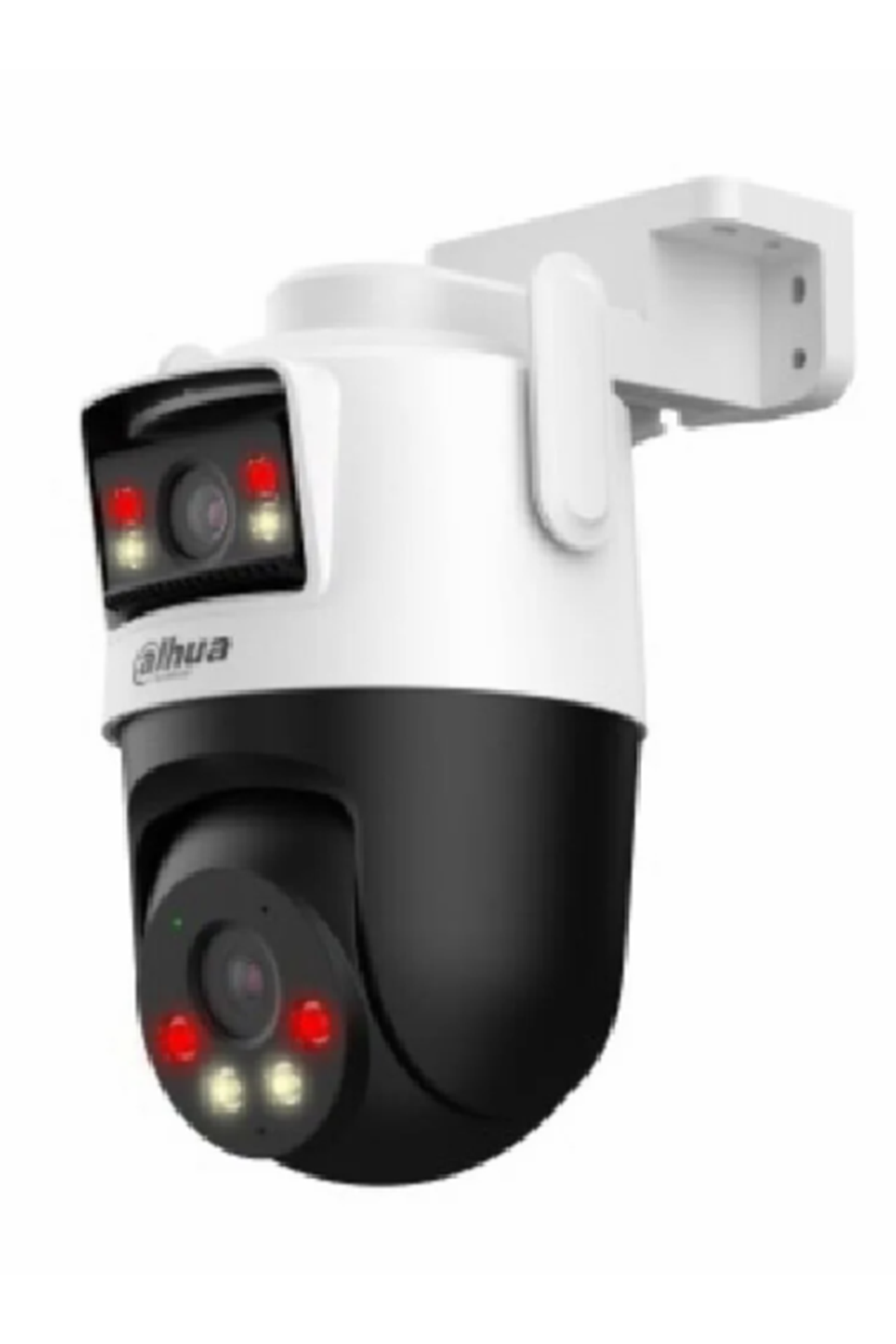

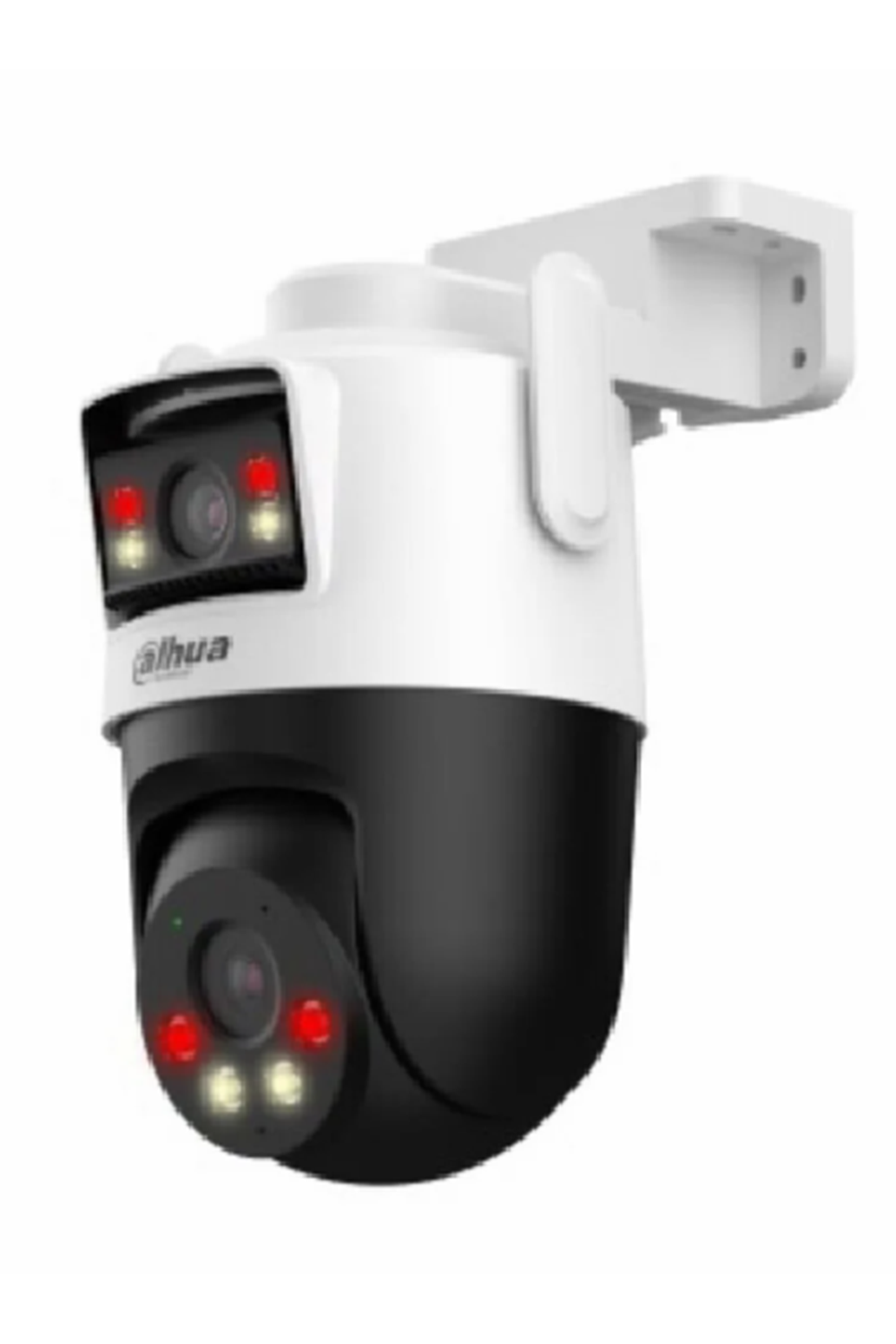

DAHUA IPC-WPT1539DD-SW-5E2-PV5+5MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera

DAHUA IPC-WPT1539DD-SW-5E2-PV
5+5MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera

Fixed Lens

Image Sensor

1/3" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Up to 20 m (65.62 ft) (Warm light)

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

-10° to 15°

Lens Type

Fixed-focal

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

H: 95°; V: 53°; D: 110°

PT Lens

Image Sensor

1/3" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Illumination Distance

Up to 50 m (164.04 ft) (IR)

Up to 40 m (131.23 ft) (Warm light)

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0° to 352°;
Tilt: 0° to 90°

Lens Type

Fixed-focal

Focal Length

6 mm

Max. Aperture

F1.6

Field of View

H: 49°; V: 26°; D: 57°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.265

Video Frame Rate

Main stream: 2880 × 1620@15 fps
sub stream: 640 × 360@15 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.265: 768 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.4000~2.4835 GHz, 2.4G,?20dBm

Wi-Fi Pairing

Bluetooth pairing

Storage

Micro SD card (support max. 256 GB)

Management Software

DMSS

Mobile Client

iOS;Android

General

Certifications

CE

Power Supply

12 VDC

Power Consumption

Basic: 2.6 W
Max.: 10.6 W (pulling stream+ IR + siren and light active deterrence)

Operating Temperature

–30 °C to +50 °C (–22 °F to +122 °F)

Operating Humidity

?95% (RH), non-condensing

Protection

IP66

Casing Material

Plastic

Product Dimensions

159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H)

Net Weight

585 g (1.29 lb)
