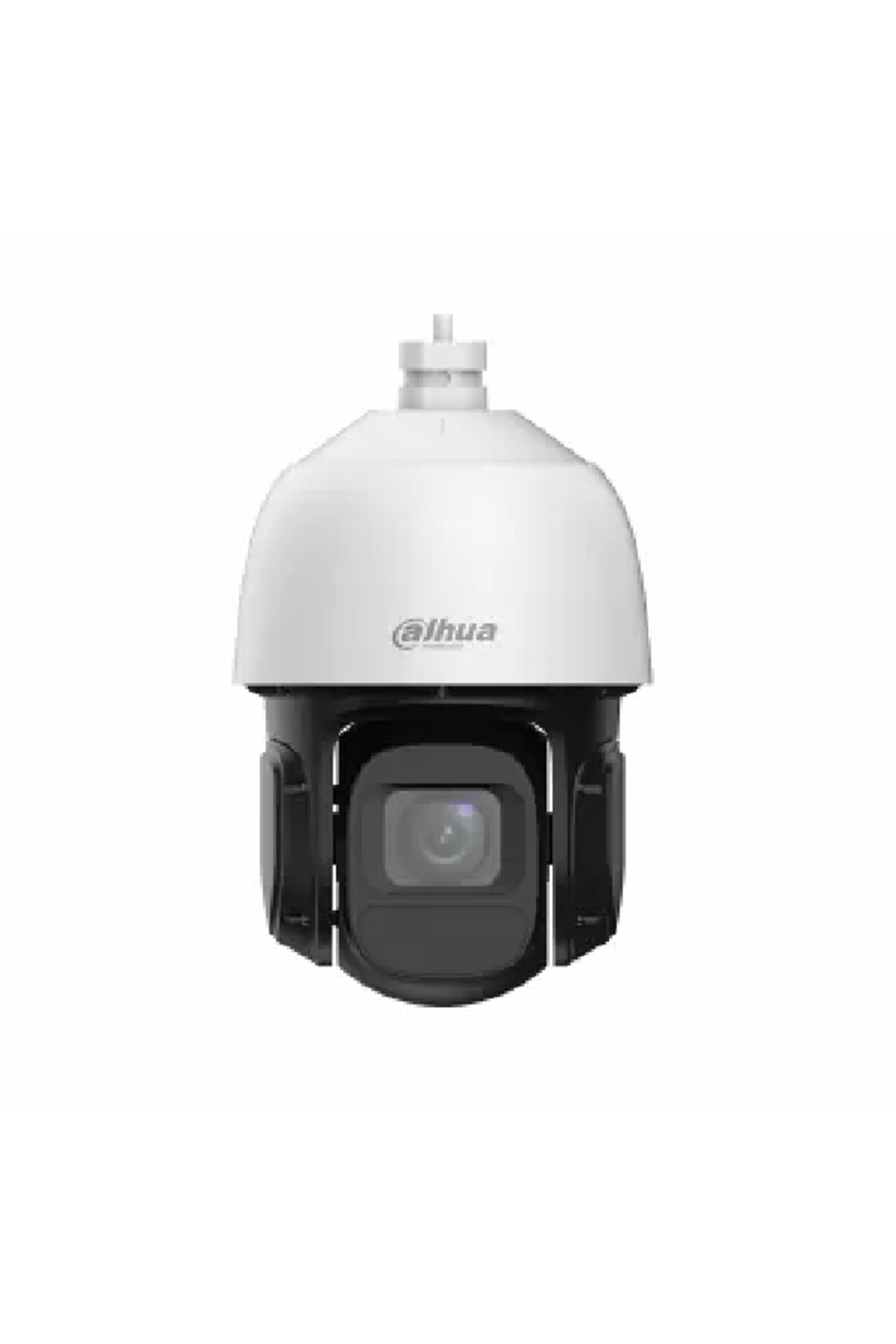

DAHUA SD3D216NB-GNY2MP 16x IR WizSense Network PTZ Camera>1/2.8" 2Megapixel CMOS>16x optical zoom>Starlight technology>Max. 25/30 fps@1080P>IR distance up to 80 m>IVS(Human/Vehicle Detection)>SMD 3.0>IP66>Smart Light +>Tour

DAHUA SD3D216NB-GNY2MP 16x IR WizSense Network PTZ Camera>1/2.8" 2Megapixel CMOS>16x optical zoom>Starlight technology>Max. 25/30 fps@1080P>IR distance up to 80 m>IVS(Human/Vehicle Detection)>SMD 3.0>IP66>Smart Light +>Tour

Image Sensor


1/2.8" CMOS

Pixel


2 MP

Max. Resolution


1920 (H) × 1080 (V)

ROM


128 MB

RAM


128 MB

Electronic Shutter Speed


1 s–1/30,000 s

Scanning System


Progressive

Min. Illumination


0.005 lux@F1.6 (Color, 30 IRE);

0.0005 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on)

Illumination Distance


80 m (262.47 ft) (IR)

Illuminator On/Off Control


Zoom Prio; Manual; Auto; Off

Illuminator Number


3 (IR)

Lens

Focal Length


5.0 mm–80 mm

Max. Aperture


F1.6–F3.5

Field of View


H: 54.4°–4.1° ; V: 31.4°–2.3°; D: 61.3°–4.7°

Optical Zoom


16×

Focus Control


Auto; Semi-auto; Manual

Close Focus Distance


0.1 m–1 m (0.33 ft–3.28 ft)

Iris Control


Fixed

DORI Distance

Lens

Detect

Observe

Recognize

Identify

5.0 mm–80 mm

1,103.4 m

( 3,620.08 ft)

435.9 m

( 1,430.12 ft)

220.7 m

( 724.08 ft)

110.3 m


( 361.88 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ

Pan/Tilt Range


Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°

Manual Control Speed


Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s

Preset Speed


Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s

Preset


300

Tour


8 (up to 32 presets per tour)

Power-off Memory


Yes

Idle Motion


Preset

PTZ Protocol


DH-SD

Smart Event

IVS


Tripwire; intrusion

Intelligence

Smart Tracking


Auto Tracking 1.0

SMD


SMD 3.0

Video

Video Compression


Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability


2 streams

Resolution


1080p (1920 × 1080); 1.3MP (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate


Main stream: 1080p/1.3M/720p @(1–25/30 fps)

Sub stream: D1/VGA/CIF@ (1–25/30 fps)

Bit Rate Control


CBR/VBR

Video Bit Rate


H.264: 64 kbps–8,192 kbps

H.265: 25 kbps–6,400 kbps

Day/Night


Auto (ICR); Color/B/W

BLC


Yes

WDR


120 dB

HLC


Yes

White Balance


Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control


Auto; manual

Noise Reduction


2D NR; 3D NR

Motion Detection


Yes

Region of Interest (RoI)


Yes

Defog


Electronic Image Stabilization (EIS)

Digital Zoom


5×

Image Rotation


180°

S/N Ratio


?55 dB

Network

Network Port


RJ-45 (10/100 Base-T)

Network Protocol


HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP

Interoperability


CGI;SDK;ONVIF (Profile S & Profile T)

Streaming Method


Unicast/Multicast

User/Host


20 (total bandwidth: 64 M)

Storage


Micro SD card (256 GB); FTP

Browser


IE 7 and later versions;

All Chrome versions;

All Firefox versions;

All Safari versions

Management Software


DSS Pro

Mobile Client


iOS;Android

Certification

Certifications


CE: EN55032/EN55024/EN50130-4

Port

Alarm Linkage


Capture; recording; send email

Alarm Event


Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply


12 VDC, 2 A ± 10%

PoE+ (802.3at)

Power Consumption


Basic: 8 W

Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC)

Power Adapter


Optional

Environment

Operating Temperature


–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity


?95%

Protection


IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions


240 mm × ?151.5 mm (9.45" × ?5.94")

Net Weight


1.5 kg (3.31 lb)

Gross Weight


2.5 kg (5.51 lb)
