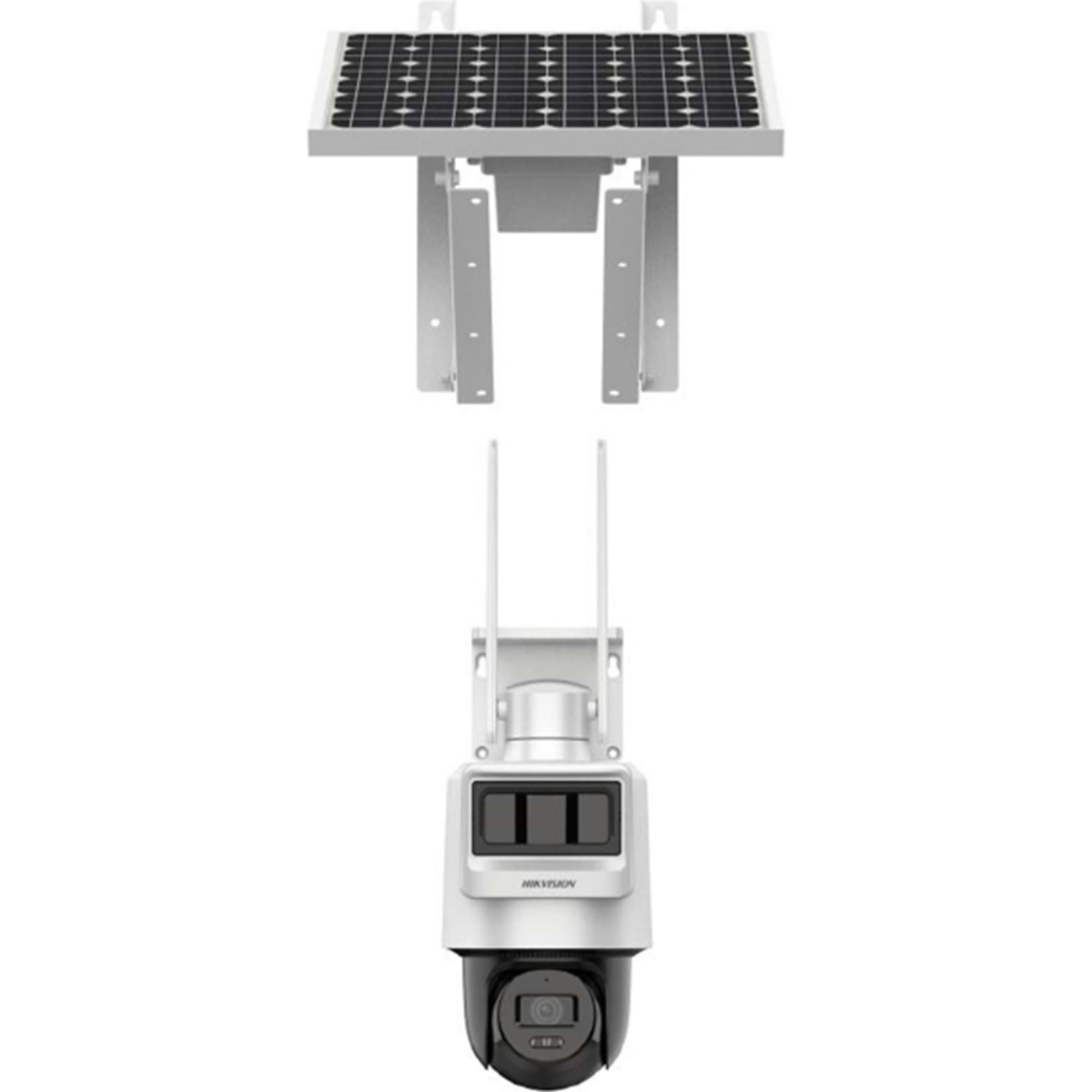

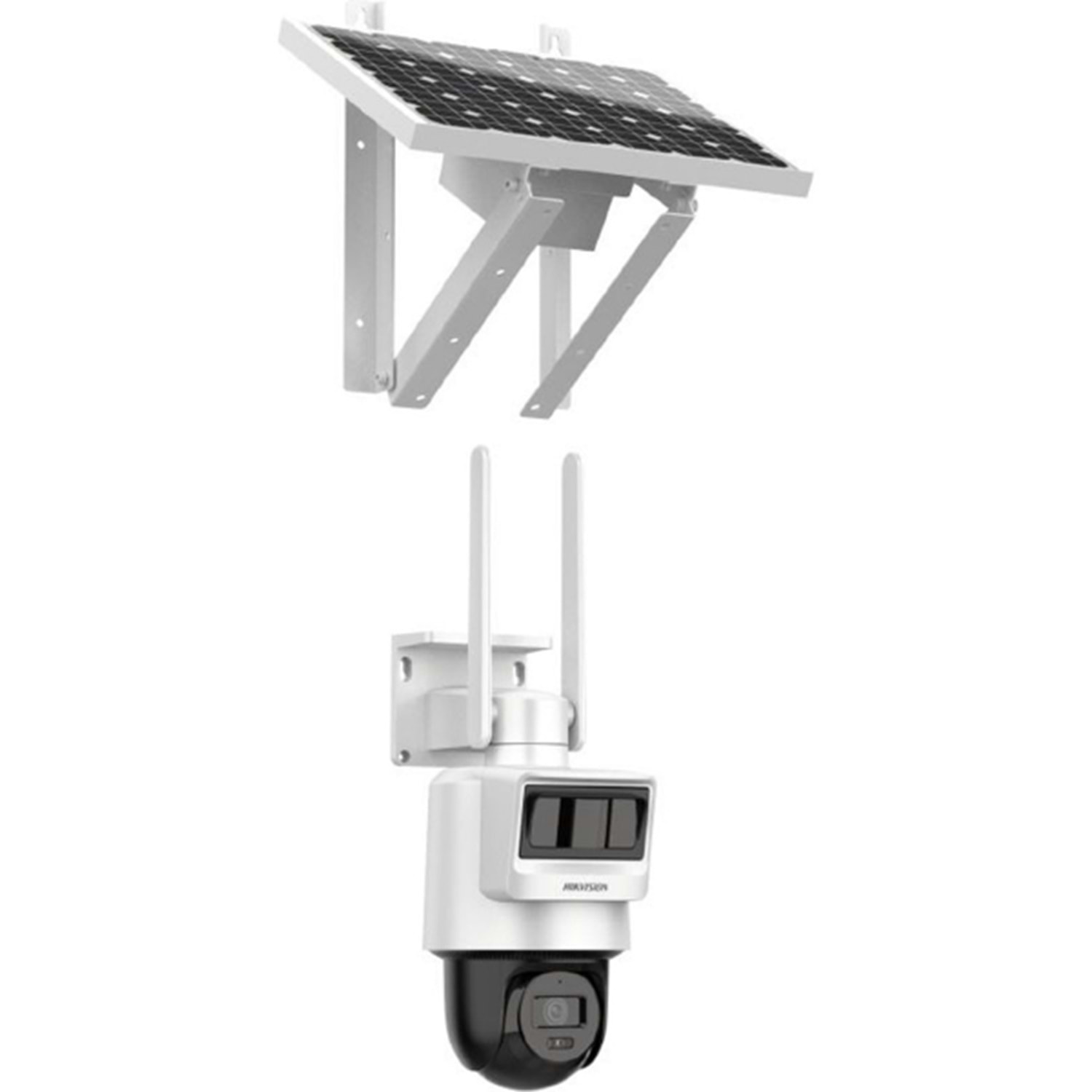

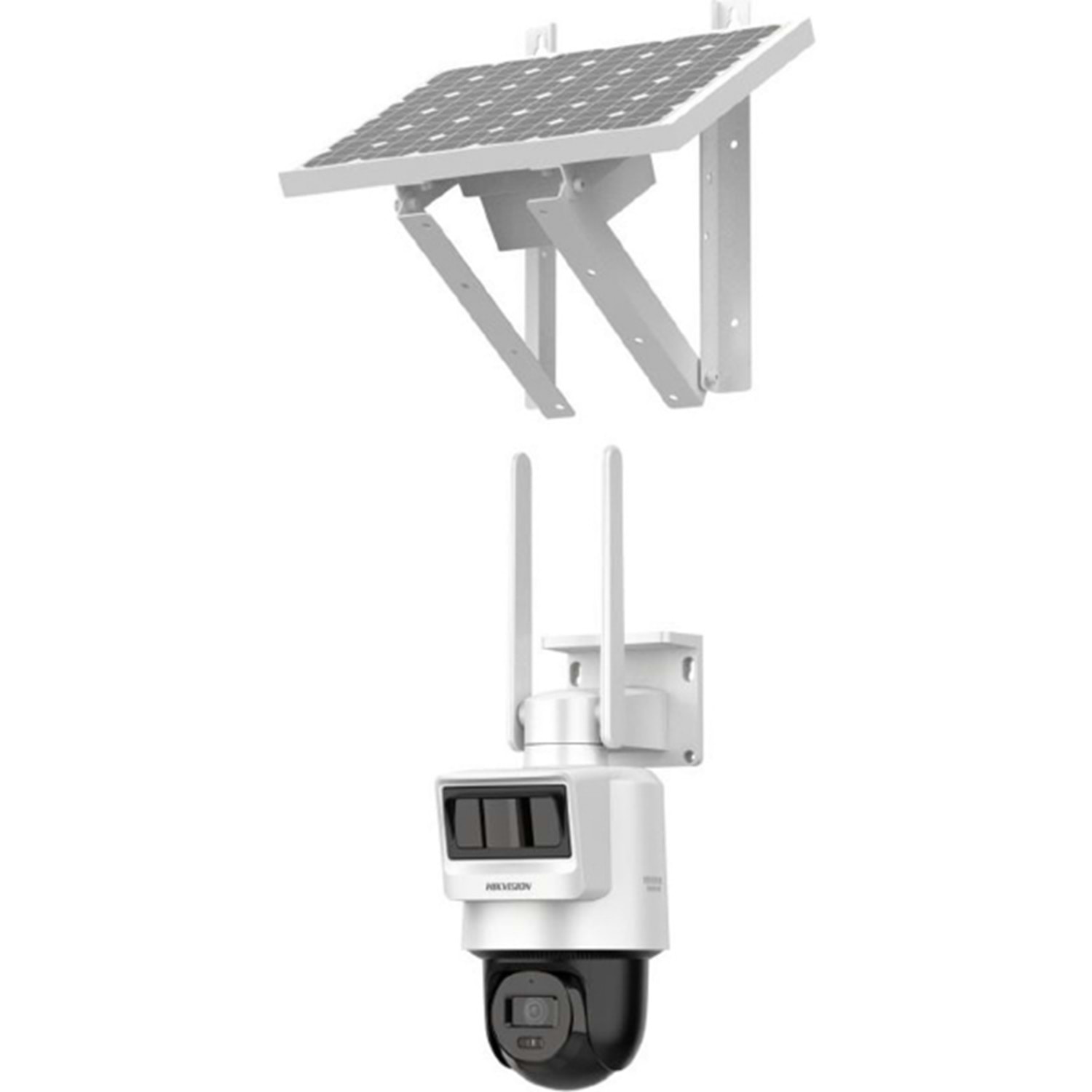

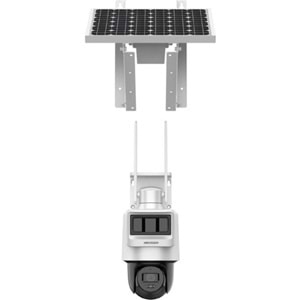

Hikvision DS-2DE2C200IWG-K/4G/C05S10 2mp 4g Lte Ptz Güvenlik Kamerası - Güneş Enerjili IP66 Dayanıklı 30M Gece Görüş

Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121°

4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Lens MountM12
Iris TypeFixed
ApertureF1.6

PTZ
Movement Range (Pan)0° to 340°
Movement Range (Tilt)0° to 80°
Pan SpeedUp to 25°/s
Tilt SpeedUp to 25°/s

DORI
DORI

2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream

50 Hz: 12.5 fps ( 1920 × 1080, 1280 × 720)

60 Hz: 15 fps ( 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 12.5 fps (640 × 480, 640 × 360)

60 Hz: 15 fps (640 × 480, 640 × 360)
Video Compression

Main stream: H.265/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio TypeMono sound
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Audio Compression G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
Audio Bit Rate16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

Network
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live ViewUp to 6 channels
ProtocolsTCP/IP, DHCP, IPv4
User/Host

Up to 32 users

3 user levels: administrator, operator, and user
ClientHik-Connect,HikCentral Professional, Hik-Partner Pro
Web BrowserLocal service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication
StandardLTE-FDD,LTE-TDD,UMTS
Frequency

EU:

LTE-FDD: B1/3/5/7/8/20/28

IN:

LTE-FDD: B1/3/5/8

LTE-TDD: B34/38/39/40/41

LA:

LTE-FDD: B2/3/4/5/7/8/28/66

NA:

LTE-FDD: B2/4/5/12/13/17/66/71

UMTS: B2/4/5
Uplink and Downlink Data Rate

EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps

IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps

LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps

NA: uplink: 50 Mbps, downlink: 150 Mbps
SIM Card TypeNano SIM

Wide Dynamic Range (WDR)Digital WDR
SNR? 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer
Transducer TypePIR + Radar
Detection AngleHorizontal: 80°, vertical: 30°
Detection RangeUp to 12 m

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone1 built-in microphone
Built-in Speaker 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset KeyYes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General
Power

Power Consumption and Current:

Typical power scenarios: 1.85 W (4G working)

Standby scenarios: 80 mW

Max. Power consumption: 7 W

Power Supply: 12 VDC ± 25%

*For debugging only

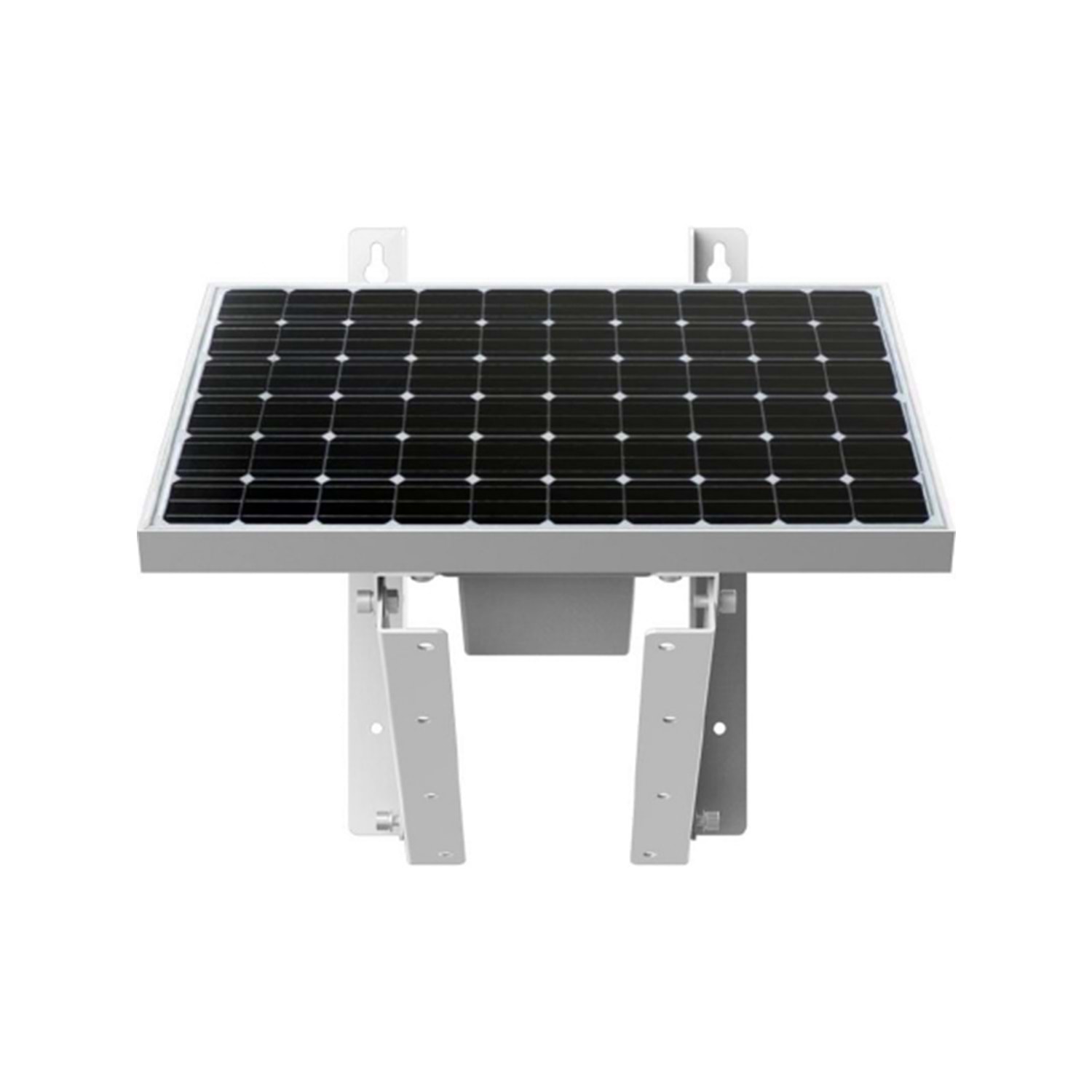

10 W (deviation: ± 5%) Solar panels

Power Interface:

Power supply interface: four-core aviation connector

Extened solar panel: four-core aviation connector
Dimension133.1 mm × 177.64 mm × 382.44mm/412.44 mm (5.24" × 6.99" × 15.06+"/16.24")
MaterialPlastic
Package Dimension375 mm × 305 mm × 398 mm (14.76" × 12.01" × 15.67")
WeightApprox. 850 g (1.87 lb.)
With Package WeightApprox. 4700 g (10.34 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Battery
Battery TypeTernary Lithium
Cycle Lifetime

27 hours (1.85 W)

Full charge battery runtime without solar input.
Battery Voltage 9 V to 12.6 V
Capacity50.76 Wh
Max. Charging Voltage12.6 V
Max. Output Voltage12.6 V
Operating Temperature

Charging: 0 °C to 45 °C (32 °F to 113 °F)

Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
Battery LifeMore than 800 cycles

Approval
RF

CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

*CE certification is only for the device sold in the European region.
EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015
Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP66: IEC 60529-2013
