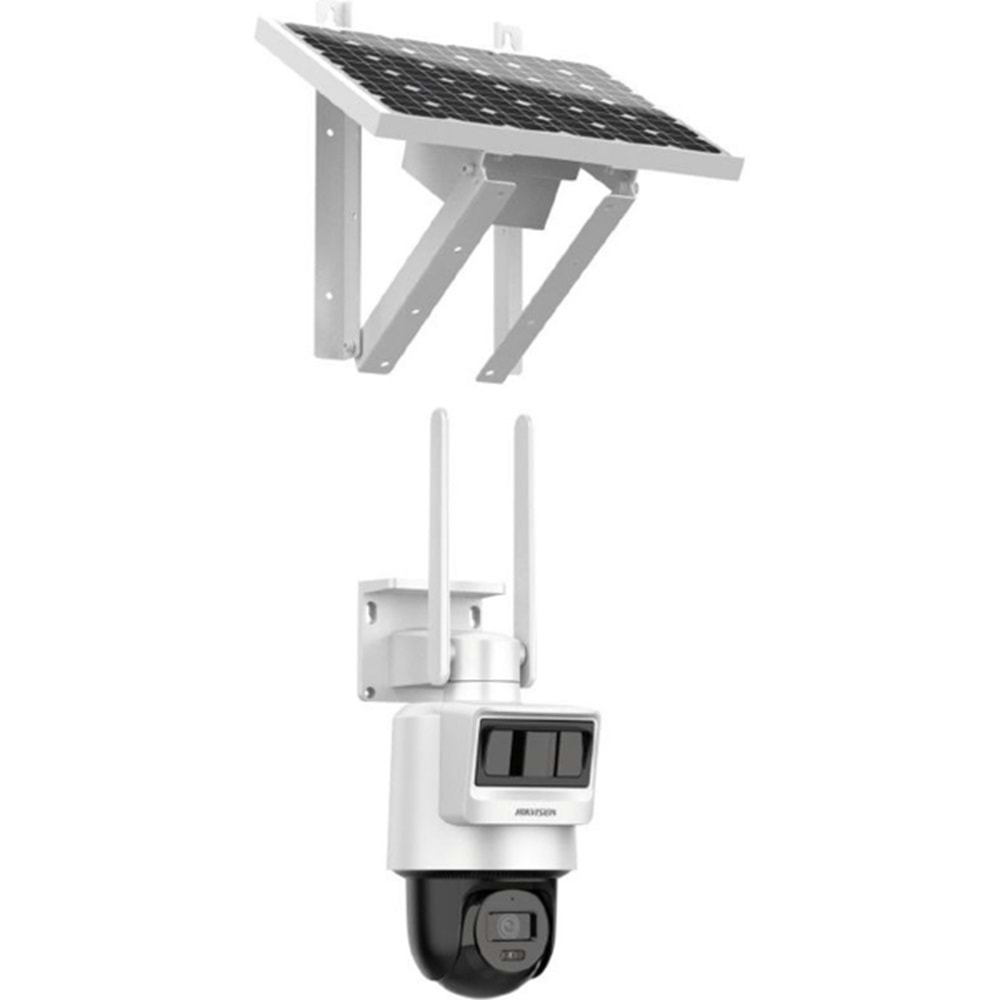

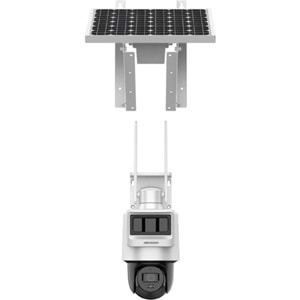

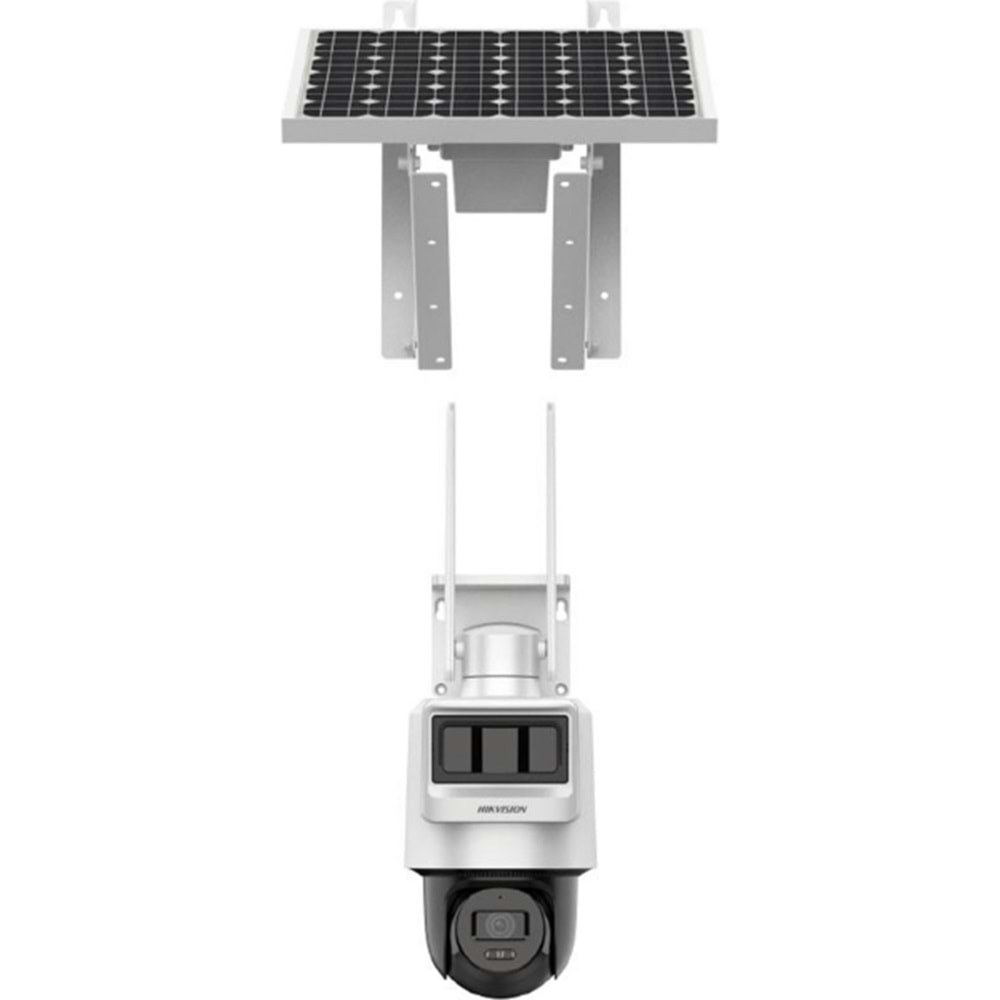

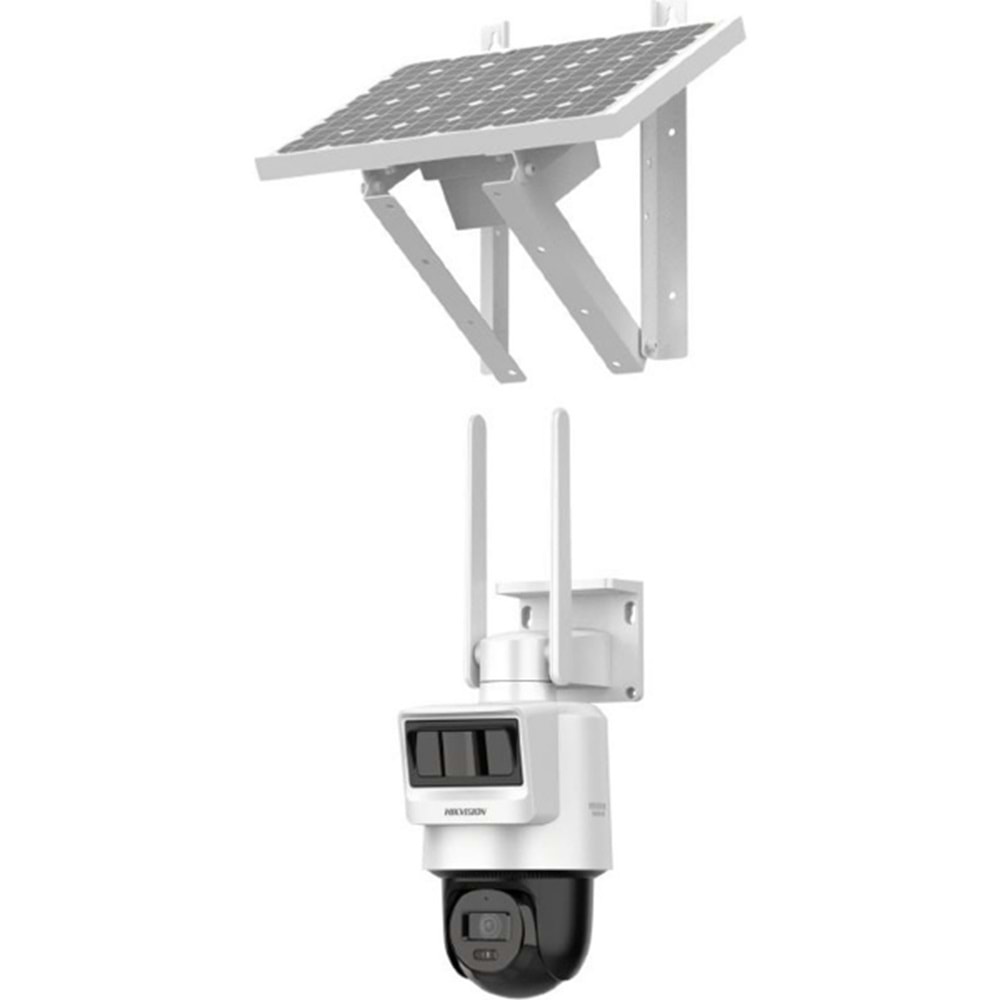

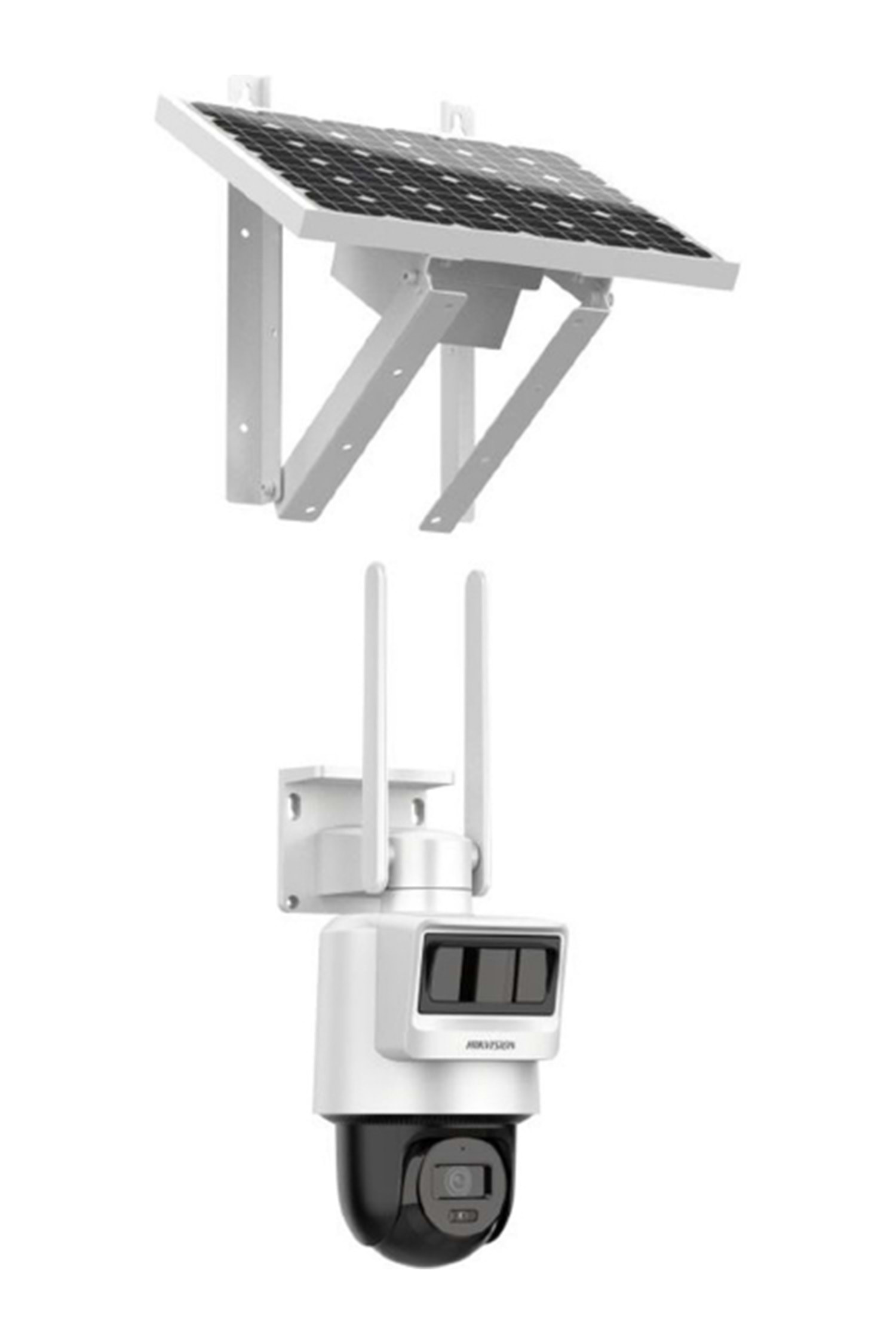

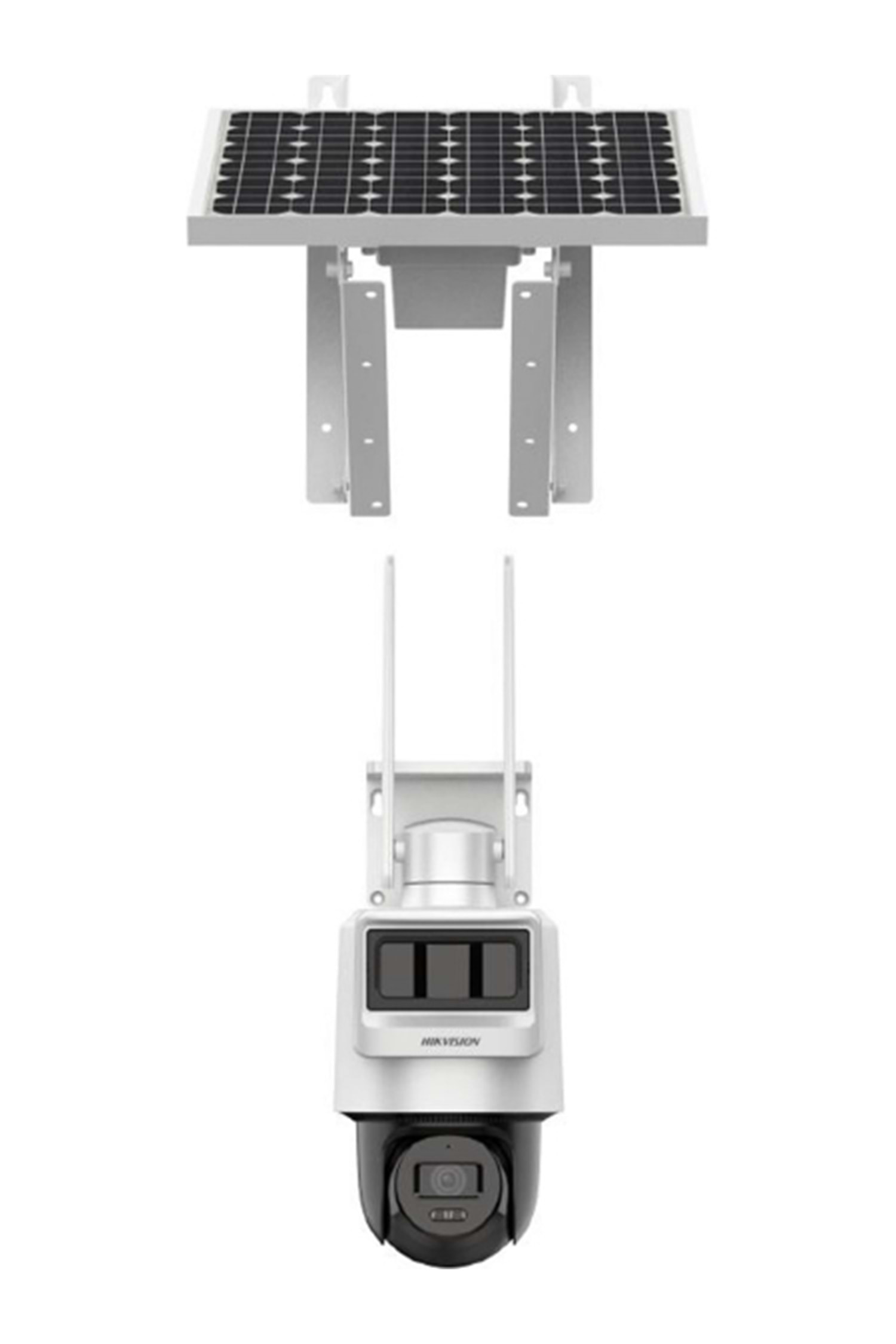

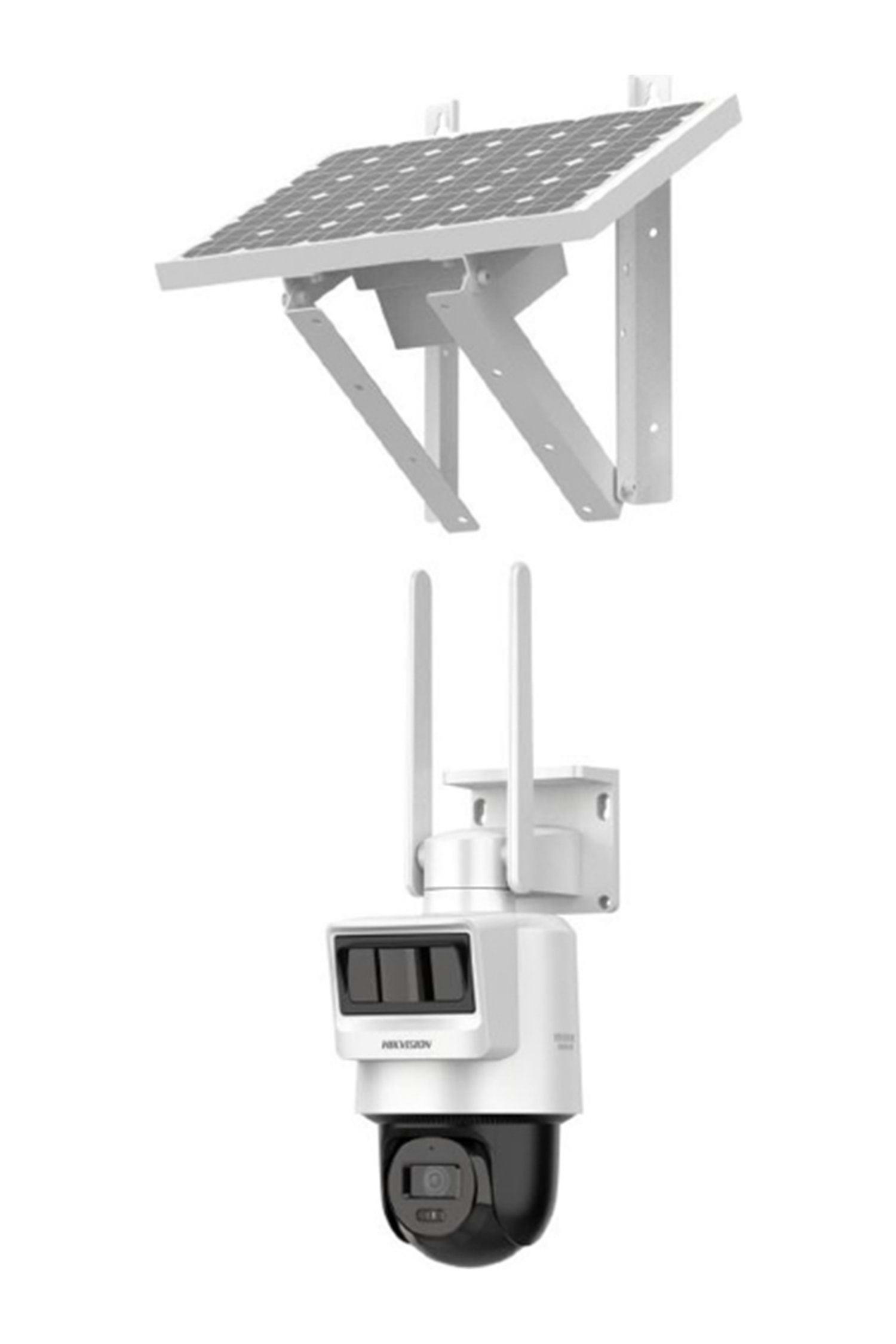

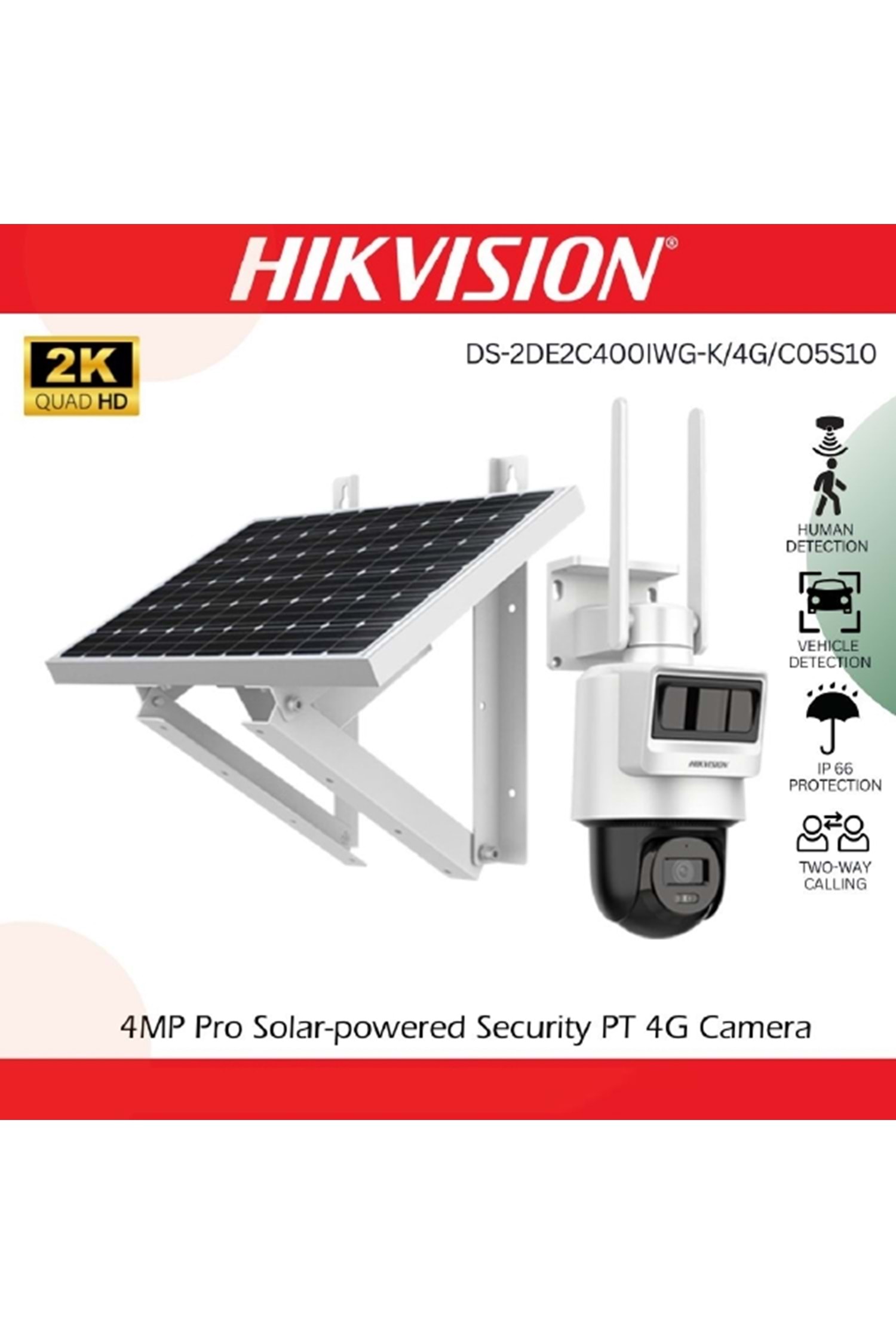

Hikvision DS-2DE2C400IWG-K/4G/C05S10 4mpix 2.8 mm 30 mt Gece Görüşü Dahili Mikrofon Pır+Radar 4g, Solar Pt Ip Kamera

Camera

Image Sensor: 1/2.7¨ Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter

Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°
4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

PTZ

Movement Range (Pan): 0° to 340°
Movement Range (Tilt): 0° to 80°
Pan Speed: Up to 25°/s
Tilt Speed: Up to 25°/s

DORI

DORI
2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type: Mono sound
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Audio Compression: G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
Audio Bit Rate: 16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

Network

API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live View: Up to 6 channels
Protocols: TCP/IP, DHCP, IPv4
User/Host: Up to 32 users

3 user levels: administrator, operator, and user
Client: Hik-Connect,HikCentral Professional, Hik-Partner Pro
Web Browser: Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

Standard: LTE-FDD,LTE-TDD,UMTS
Frequency
EU: LTE-FDD: B1/3/5/7/8/20/28
IN: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41
LA: LTE-FDD: B2/3/4/5/7/8/28/66
NA: LTE-FDD: B2/4/5/12/13/17/66/71
UMTS: B2/4/5
Uplink and Downlink Data Rate
EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
NA: uplink: 50 Mbps, downlink: 150 Mbps
SIM Card Type: Nano SIM


Wide Dynamic Range (WDR): Digital WDR
SNR: ? 52 dB
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Image Settings: Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer

Transducer Type: PIR + Radar
Detection Angle: Horizontal: 80°, vertical: 30°
Detection Range: Up to 12 m

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: 1 built-in microphone
Built-in Speaker: 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key: Yes

Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

General

Power
Power Consumption and Current:
Typical power scenarios: 1.85 W (4G working)
Standby scenarios: 80 mW
Max. Power consumption: 7 W
Power Supply: 12 VDC ± 25%

*For debugging only

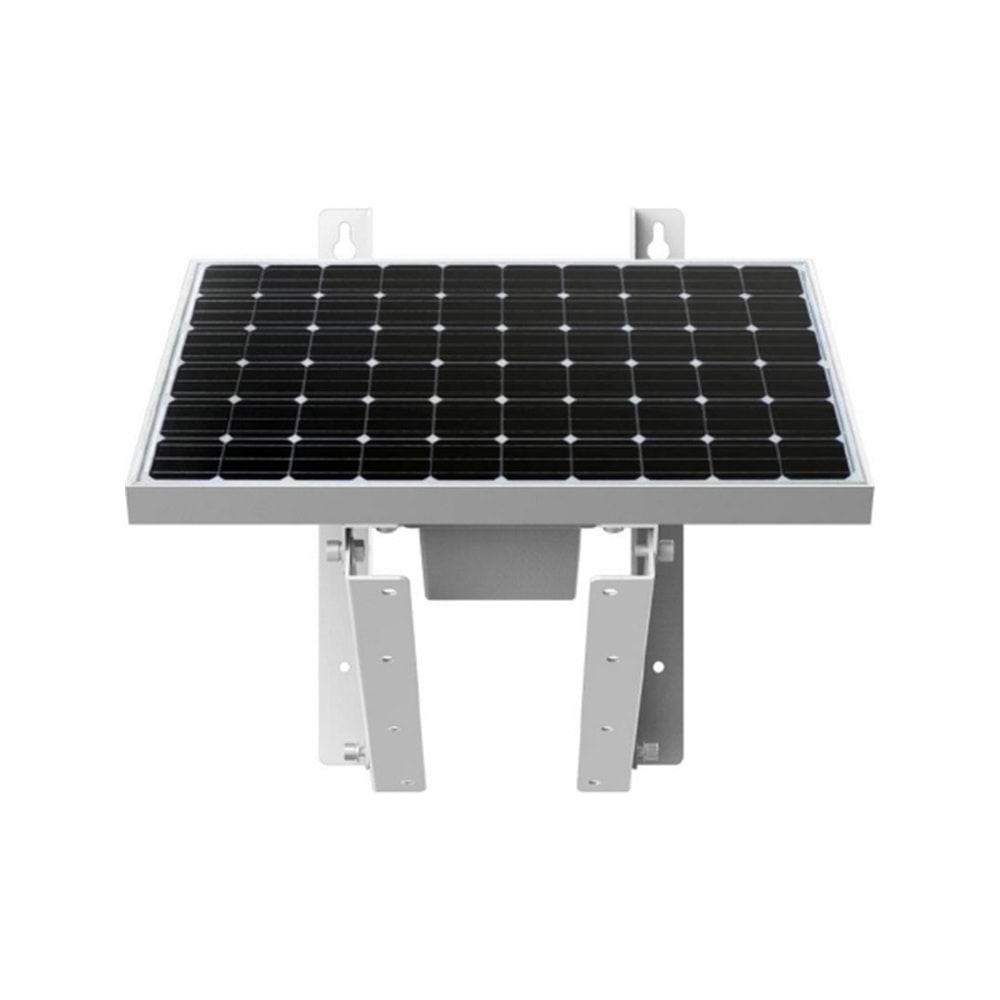

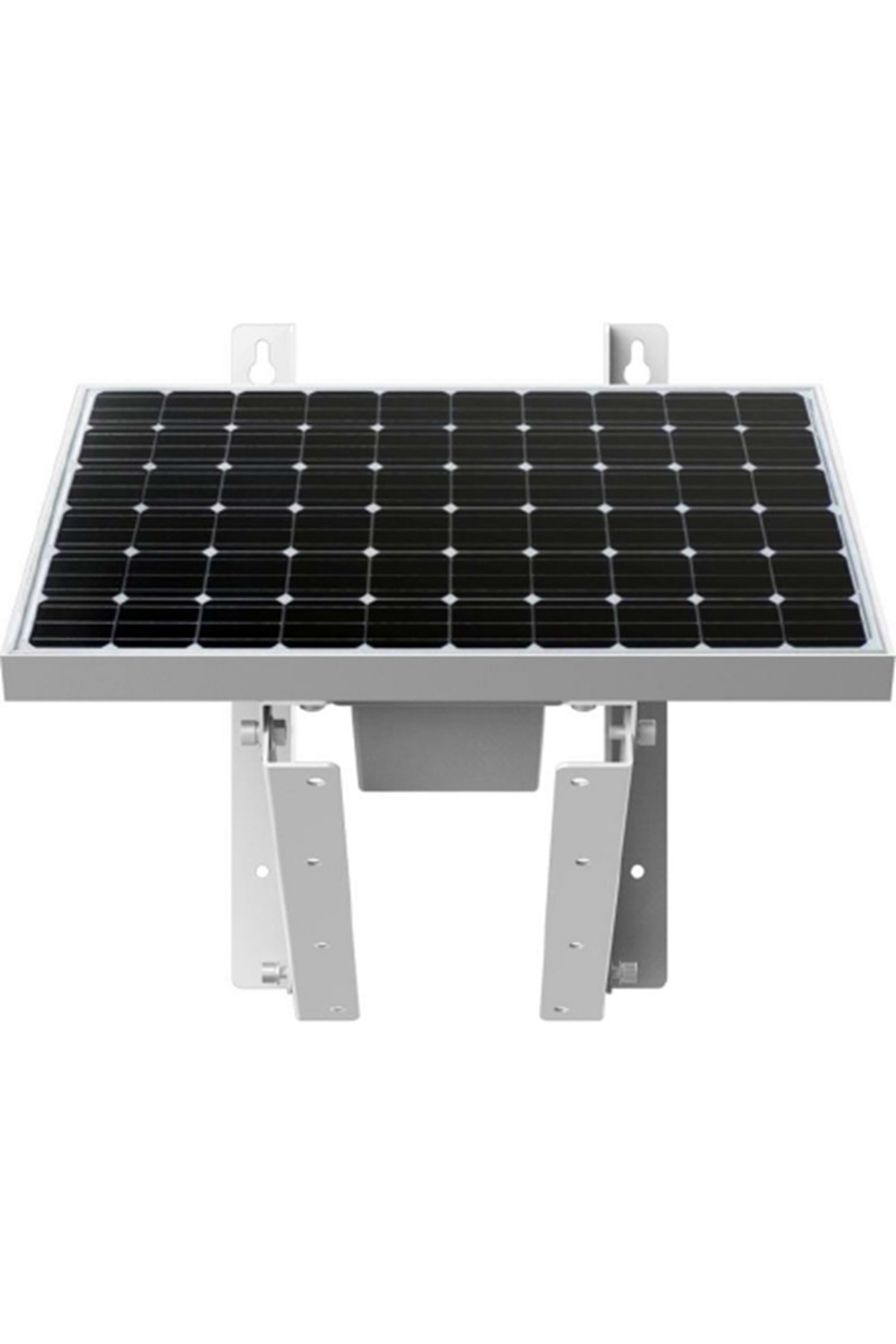

10 W (deviation: ± 5%) Solar panels

Power Interface:

Power supply interface: four-core aviation connector

Extened solar panel: four-core aviation connector
Dimension: 133.1 mm × 177.64 mm × 382.44 mm/412.44 mm (5.24¨ × 6.99¨ × 15.06¨/16.24¨)
Material: Plastic
Package Dimension: 375 mm × 305 mm × 398 mm (14.76¨ × 12.01¨ × 15.67¨)
Weight: Approx. 850 g (1.87 lb.)
With Package Weight: Approx. 5400 g (11.88 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email

Battery

Battery Type: Ternary Lithium
Cycle Lifetime
27 hours (1.85 W)
Full charge battery runtime without solar input.
Battery Voltage: 9 V to 12.6 V
Capacity: 50.76 Wh
Max. Charging Voltage: 12.6 V
Max. Output Voltage: 12.6 V
Operating Temperature
Charging: 0 °C to 45 °C (32 °F to 113 °F)
Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
Battery Life: More than 800 cycles

Approval

RF

CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

*CE certification is only for the device sold in the European region.
EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection: IP66: IEC 60529-2013
