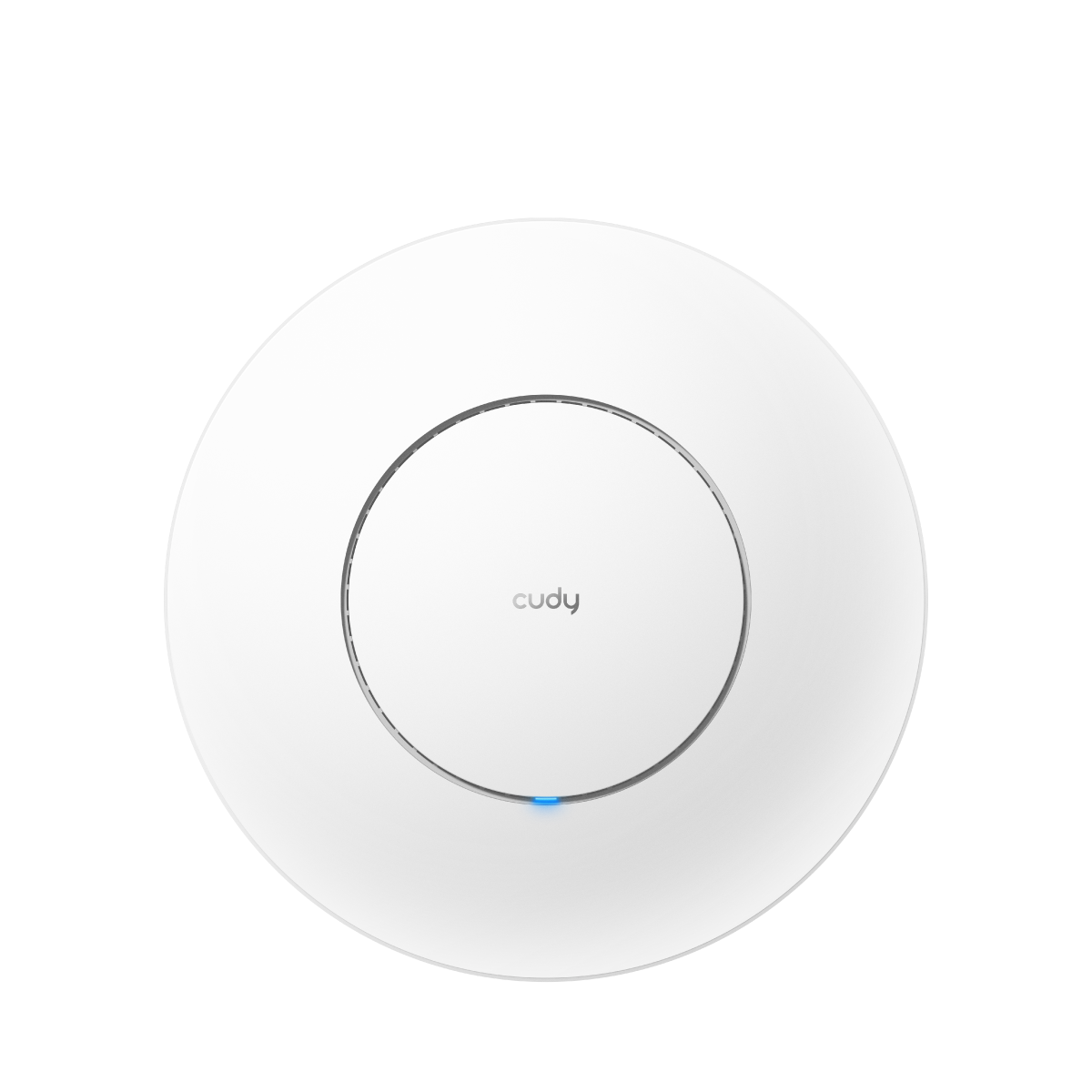

AC1200 Wi-Fi Access Point

AP1200 1.0

Adapter in the Box DC Adapter (AP1200) PoE Adapter (AP1200_P)

A wall/ceiling-mounted WiFi AP designed for small-sized offices and classrooms.

4-Stream Dual-Band Wi-Fi 5

867 Mbps + 300 Mbps Wi-Fi ¹

1× Fast Ethernet Port (PoE In)

802.3at/af, Passive PoE, DC

Covers 100m² (1,100 ft²) ²

50 Connected Devices ³

Responsive and Wide-Coverage Wi-Fi for SMB

AP1200 delivers seamless, high-speed dual-band Wi-Fi that supports both new and legacy devices on their respective bands. Ideal for small-sized offices, and classrooms.

Connect More Devices

With MU-MIMO technology, multiple devices can receive data simultaneously, enhancing efficiency and performance even under heavy usage.

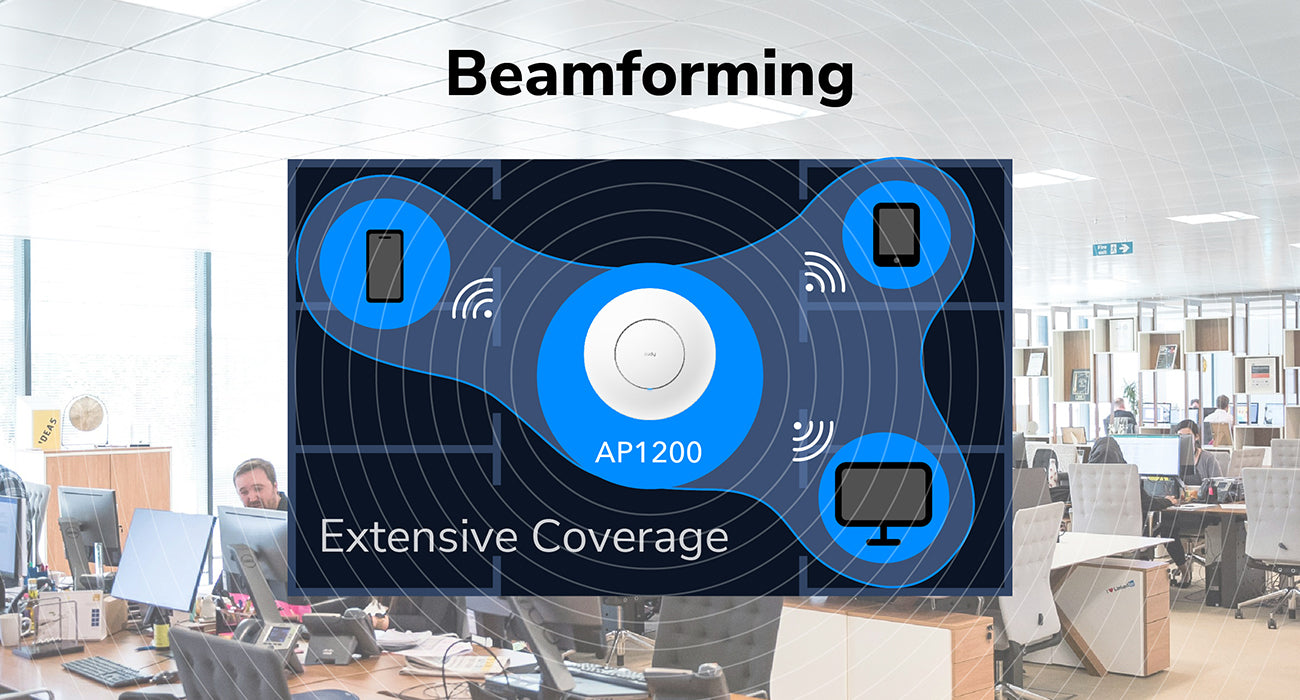

Boosted Coverage

Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.

Seamless Coverage with Fast Roaming

Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

Advanced Business Features

Captive Portal

Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).

Band Steering

Assign devices to less congested bands.

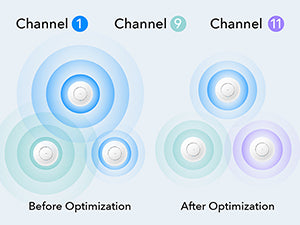

Auto Channel Selection

Avoid signal interruptions with nearby access points.

Auto Mesh Optimization

Form mesh backhaul via less congested routes automatically.

Flexible Wired-and-Wireless Hybrid Backhaul

Simple Wireless Mesh Backhaul

Hybrid Backhaul for Higher Performance

Multi-Mode for Multiple Scenarios

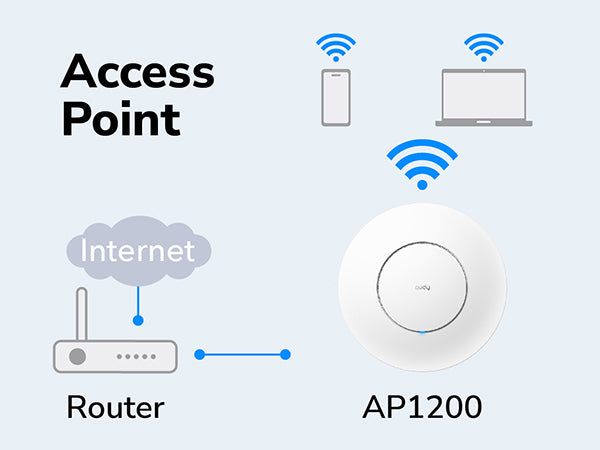

Access Point

Simply create a Wi-Fi spot behind a router.

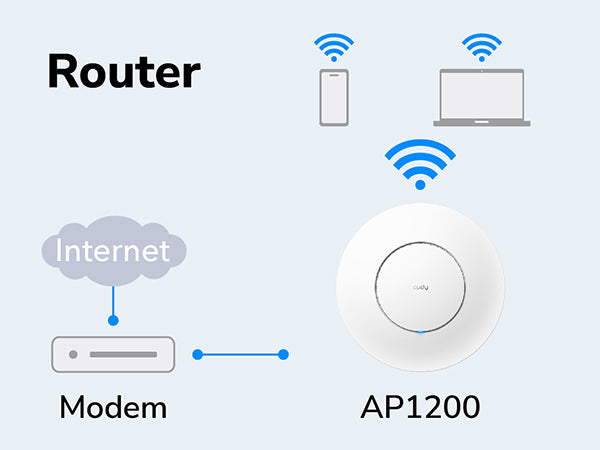

Wi-Fi Router

Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.

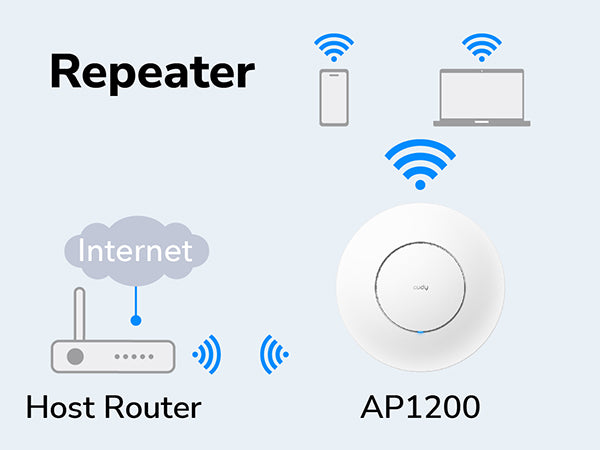

Range Extender

The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

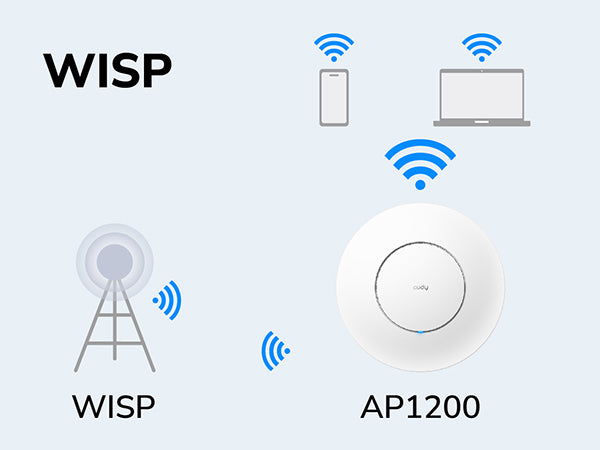

WISP

WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

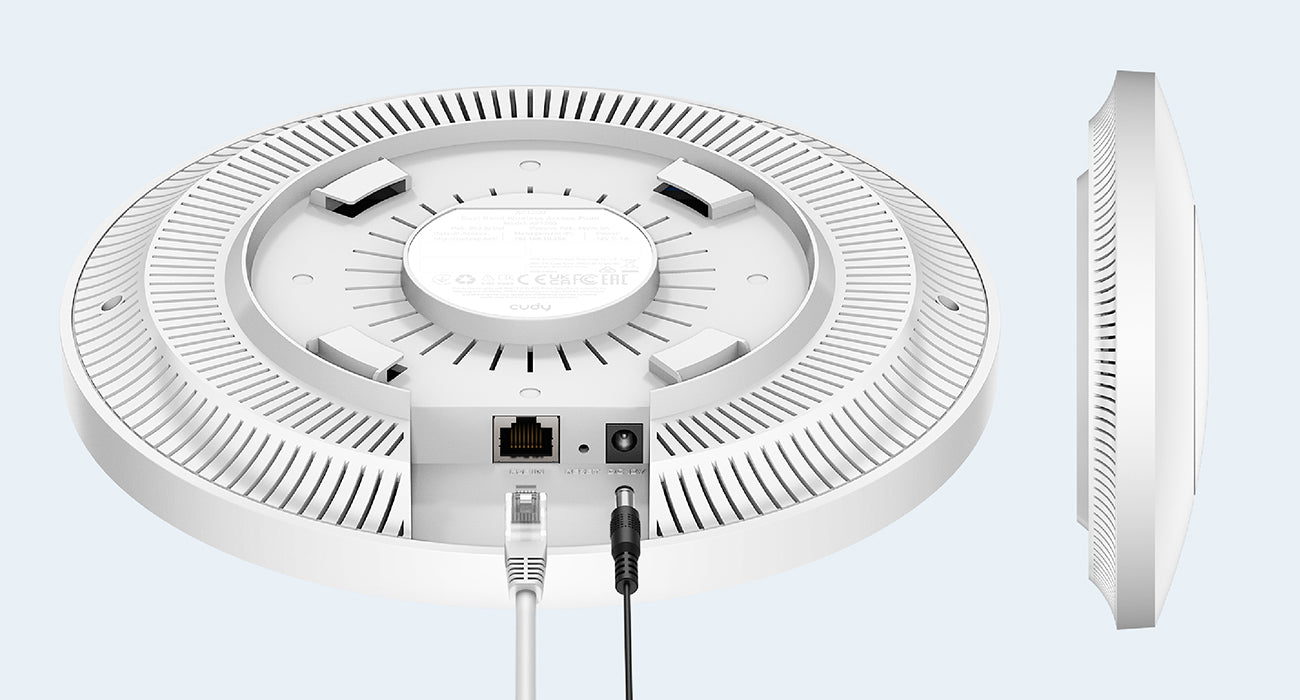

Versatile Powering and Installation

PoE or DC Power Supply

Supports 802.3at/af PoE, 24-57V Passive PoE, and DC Power Supply. DC power adapter is included in the box.

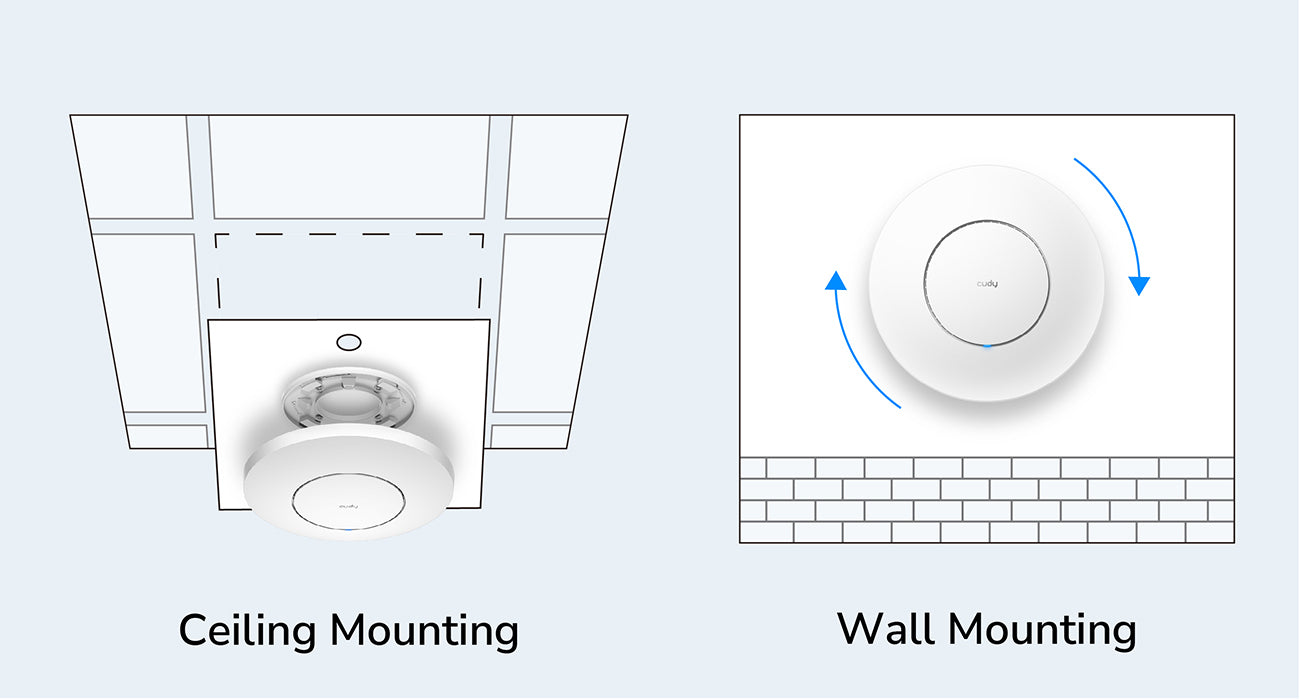

Versatile Mounting

Mounting kits are included in the box.

Hardware Specs

Software Specs

Model Version	AP1200 1.0
CPU	CPU Details	580 MHZ Single-Core CPU
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR2
Wireless	5 GHz Wi-Fi Speed	867 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Internal
	5 GHz Antenna Gain Max	4.64dBi
	2.4 GHz Antenna Gain Max	5.31 dBi
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces	Gigabit RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button
	Power Input	DC Jack PoE via Ethernet Port
Power	Power Methods	DC Passive PoE 802.3at/af PoE
	DC	12V 1A
	Passive PoE	24V
	Power Adapter	AP1200 \| DC Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC AP1200P \| PoE Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 24V Passive PoE
	Max Power Consumption (W)	12 W
	Idle Power Consumption (W)	2.5 W
Reliability	EMS	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?) Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Wall-mount Ceiling-mount
	Dimension	Φ231.9×57.1 mm Φ9.13×2.25 inches
	Product Weight	370.5 g (13.07 oz.)

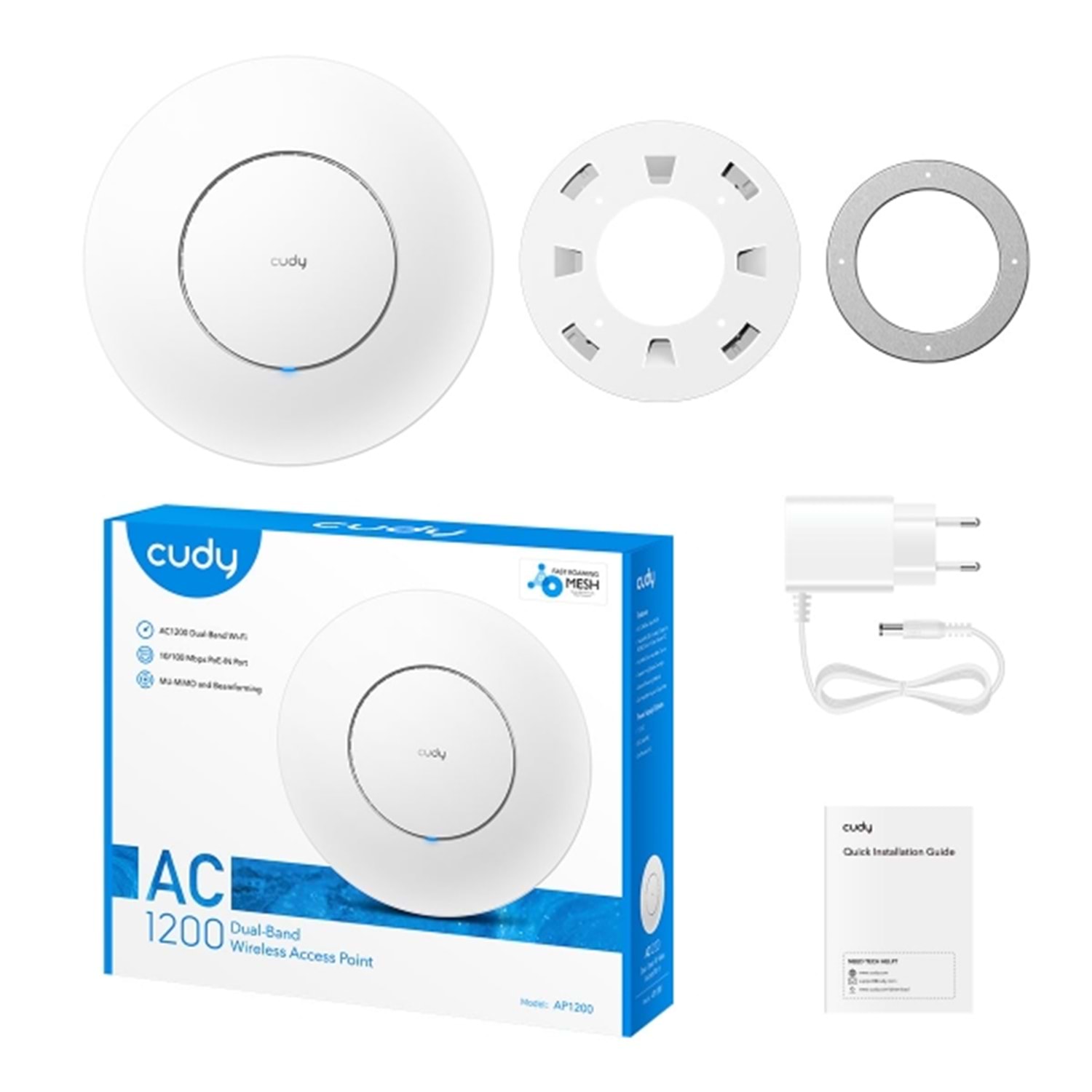

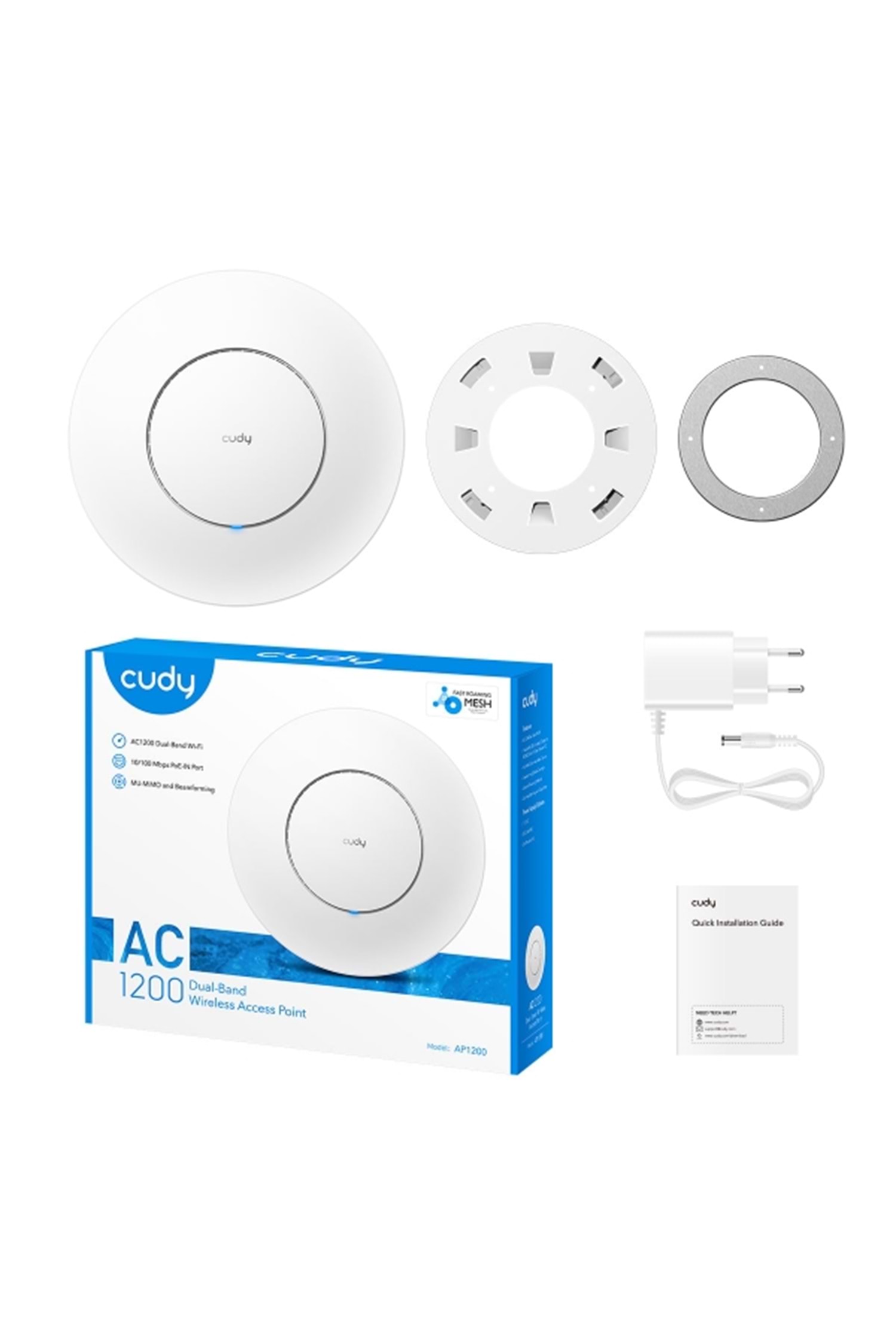

Package Content	AP1200 Power Adapter Mounting Kit Installation Guide
Ordering Information	Retail Package Weight	EU: 781.1 g (27.55 oz.)
	Retail Package Dimension	283×238×68 mm 11.14×9.37×2.68 inches
	Units per Carton	20
	Carton Net Weight	9.26 kg (20.41 lbs) EU: 15.6 kg (34.39 lbs)
	Carton Gross Weight	10.24 kg (22.58 lbs) EU: 16.7 kg (36.82 lbs)
	Carton Dimension	58×37.5×49.5 cm 22.83×14.76×19.49 inches

Model Version	AP1200 1.0
Wireless	Wi-Fi Standards	Wi-Fi 5
	Max Wi-Fi Modulation	256-QAM
	Wi-Fi Efficiency	MU-MIMO
	Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
	Max Capacity	128
	Recommended Client Upper Limit	50
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	True
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	Captive Portal	True
	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN	True
	Online Detection	True
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
General	Internet Failover Sequence	WAN WISP
