SAGEMCOM 5655v2

ONT

© 2023 Normann Engineering GmbH • Linzer Str. 139 • A-4600 Wels • T +43 (0) 7242 70 921-0 • office@normann-engineering.com • Irrtum, Satz- und Druckfehler vorbehalten

WAN PON port with SC/APC Optical module connector

LAN 4xGb Ethernet

POTS 2xPOTS ports RJ11

Wireless Wi-Fi WLAN 802.11 b/g/n/ac

USB 1 port USB 2.0

CPU BCM 68380

Switch Chipset Integrated in BCM 68380

WiFi Chipset 2.4GHz BCM43217

WiFi Chipset 5 GHz BCM43602

SLIC LE9540

NAND Flash 128MB

DDR2 DDR3 256MB

Port/Button Function

ON/OFF Indicates the power button. It is used to power on

or power off the device.

POWER Indicates the power port, used to connect to the

power adapter or backup battery unit.

USB Indicates USB host port, used to connect to USB

storage devices.

TEL1–TEL2 Indicates VoIP telephone ports (RJ-11), used to

connecting to the ports on telephone sets.

LAN1–LAN4

Indicates auto-sensing 10/100/1000M Base-T

Ethernet ports (RJ-45), used to connect to PCs or IP

set-top boxes (STBs).

Reset

Indicates the reset button. Press the button for a

short time to reset the device; press the button for a

long time (longer than 10s) to restore the device to

the default settings and reset the device.

WLAN Indicates the WLAN button, used to enable or

disable the WLAN function.

WPS Indicates the WLAN protected setup.

ONT Details

Product Overview

CPE Hardware Description

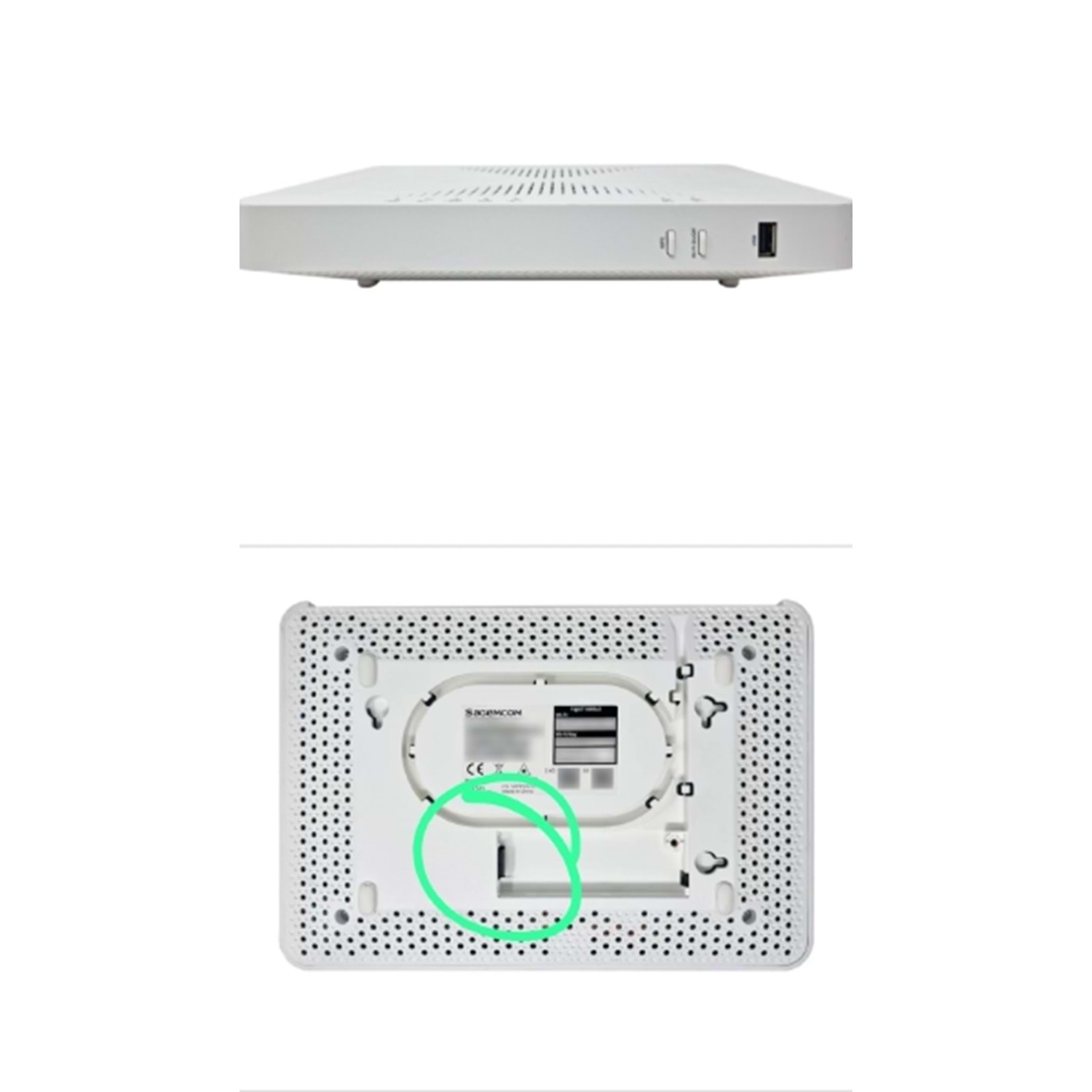

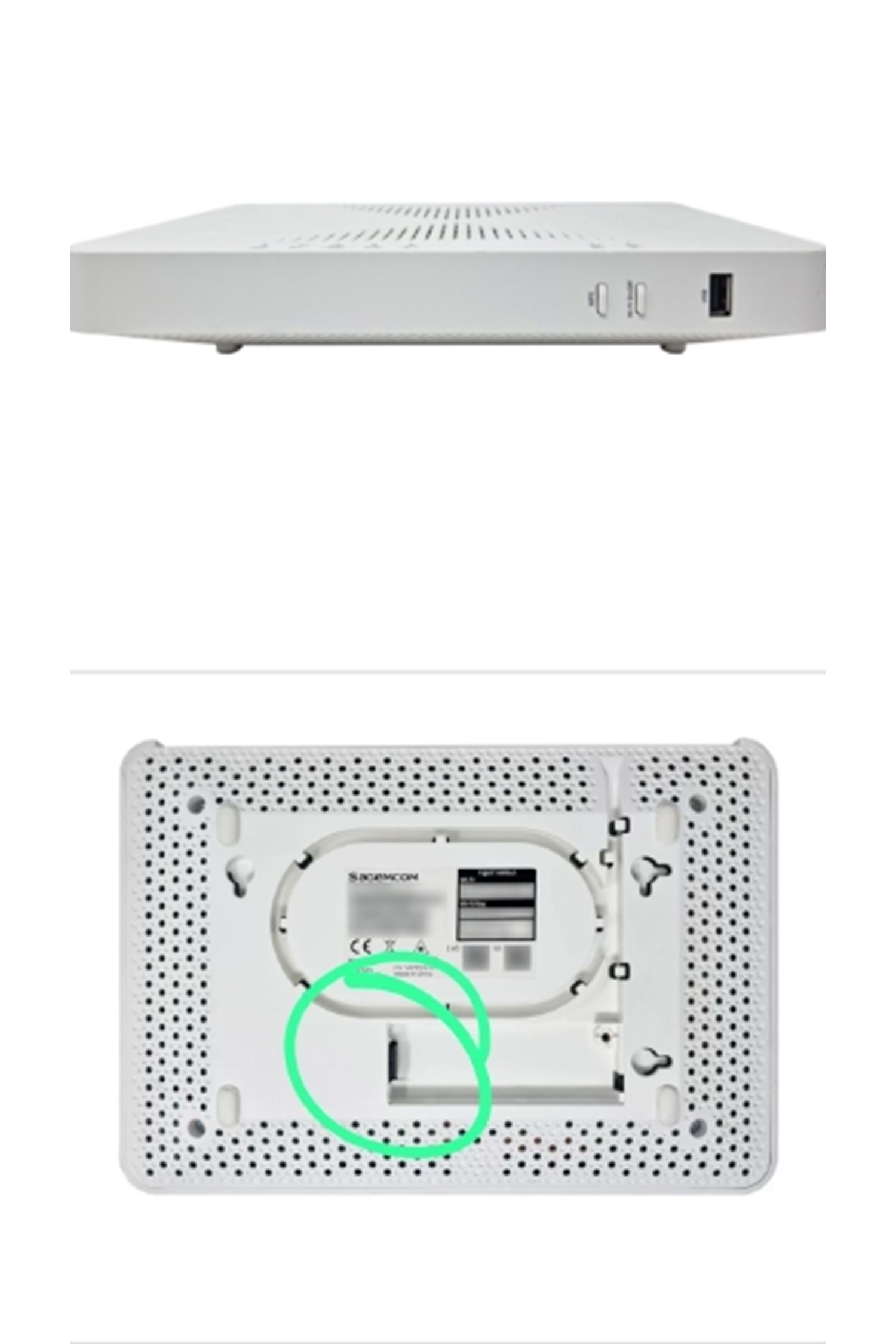

Sagemcom / F@st 5655v2 AC RFCPE manufacturer/model

Sagemcom F@ST 5655v2

The F@ST5655v2 is an optical network termination unit

(ONT Optical Network Terminal) that can be used in a GPON Gigabit-

capable Passive Optical Network (according to ITU Recommendation

G.984.1). The Sagemcom F@ST5655v2 has 4 Gigabit Ethernet (GE)

interface (LAN1-4), 1 USB port, 1 telephony port and provides access

to 2.4 and 5GHz AC WiFi networks. It provides a very good wireless

connectivity. The adapter port of the Sagemcom F@ST5655v2 is

SC/APC. Also there is an USB port that can be used as an external

hard drive and easily access personal files.

ONT

© 2023 Normann Engineering GmbH • Linzer Str. 139 • A-4600 Wels • T +43 (0) 7242 70 921-0 • office@normann-engineering.com • Irrtum, Satz- und Druckfehler vorbehalten

LED Description Status Description

Power Power supply LED

Off Power Box is off.

Flashing Green Power box booting - 1Hz (50% on 50% off)

Solid Green Power Box is ready to use.

Flashing Amber Upgrade ongoing - 1Hz (50% on 50% off)

Internet Internet LED

Off There is no Internet connection.

Solid Green The RGW received an IP address

Flashing Green Traffic between LAN and WAN -2Hz (50% on

50% off)

LAN LAN port LED

Off There is no device connected to LAN port

Solid Green There is a device connected to LAN port

Flashing Green The device connected to LAN port is exchanging

data - 2Hz (50% on 50% off)

Phone Voice telephone port

LED

Off One account: The account is disabled

Two accounts: both accounts are disabled

Solid Green One account: The SIP account is registered, able

to make and receive calls.

Two accounts: Both SIP accounts are registered,

able to make and receive calls.

Flashing Green One or two account: Call ongoing - 2Hz (50% on

50% off)

Solid Amber One account: N/A

Two accounts: one of the 2 accounts gets a

wrong authentication

Solid Red One account: Wrong authentication

Two accounts: both accounts get a wrong

authentication

Wifi WLAN LED

Off The wireless interface is disabled.

Solid Green The Wireless interface is activated.

Flashing Green The Wireless interface is receiving or

transmitting data. - 2Hz (50% on 50% off)

WPS WPS LED

Off Default status - WPS window is closed

Flashing Green The WPS pairing is ongoing - 2Hz (50% on 50%

off)

Solid Green WPS pairing succesfull (the LED turns off after 10

secs)

ONT

© 2023 Normann Engineering GmbH • Linzer Str. 139 • A-4600 Wels • T +43 (0) 7242 70 921-0 • office@normann-engineering.com • Irrtum, Satz- und Druckfehler vorbehalten

Section Item Description

The GPON system is a single-fiber bidirectional system. It uses wavelengths 1310 nm in TDMA mode

in the upstream direction and wavelengths 1490 nm in broadcast mode in the downstream direction.

The maximum downstream rate at the GPON physical layer is 2.488 Gbit/s.

The maximum upstream rate at the GPON physical layer is 1.244 Gbit/s.

Supports a maximum logical distance of 60 km and a physical distance of 20 km between the

remotest ONT and nearest ONT, which are defined in ITU-T G.984.1.

Supports a maximum of eight T-CONTs. Supports T-CONT types Type1 to Type5. One T-CONT

supports multiple GEM ports (maximum of 32 GEM ports are supported).

Supports three authentication modes: by SN, by password, and by SN+password.

Upstream throughput: the throughput is 1G for 64-byte packets or other types of packets in RC4.0

version.

Downstream throughput: The throughput of any packets is 1 Gbit/s.

If the traffic does not exceed 90% of the system throughput, the transmission delay in the upstream

direction (from UNI to SNI) is less than 1.5 ms (for Ethernet packets of 64 to 1518 bytes), and that in

the downstream direction (from SNI to UNI) is less than 1 ms (for Ethernet packets of any length).

LAN 4xGb Ethernet Four auto-sensing 10/100/1000 Base-T Ethernet ports (RJ-45): LAN1-LAN4

Ethernet Features

Auto-negotiation of rate and duplex mode

MDI/MDI-X auto-sensing

Ethernet frame of up to 2000 bytes

Up to 1024 local switch MAC entries

MAC forwarding

Route Features

Static route,

NAT, NAPT, and extended ALG

DHCP server/client

PPPoE client

The LAN1 and LAN2 ports are mapped to the Internet WAN Connection.

The LAN3 and LAN4 ports are mapped to the IPTV WAN Connection.

VLAN #1 mapped to LAN1, LAN2 and WiFi are in Routed for Internet with default IP 192.168.1.1 and

DHCP class 192.168.1.0/24

VLAN #2 mapped to LAN2 and LAN4 are in Bridged for IPTV

GPON Uplink

Configuration

ONT

© 2023 Normann Engineering GmbH • Linzer Str. 139 • A-4600 Wels • T +43 (0) 7242 70 921-0 • office@normann-engineering.com • Irrtum, Satz- und Druckfehler vorbehalten

IGMP version v1,v2,v3

Multicast

Specification Yes

IGMP proxy no

Multicast groups Up to 255 multicast groups at the same time

Two VoIP

telephone ports

(RJ-11): TEL1,

TEL2

G.711A/u, G.729 and T.38

Real-time Transport Protocol (RTP)/RTP Control Protocol (RTCP) (RFC 3550)

Session Initiation Protocol (SIP)

Dual-tone multi-frequency (DTMF) detection

Frequency shift keying (FSK) sending

Two phone users to call at the same time

Client Parameter

example to be

supported

The device MUST use a SIP URI structured: <SIP-ID>@<SIP-Proxy FQDN> =

+CC_AC_SNB@as1.romtelecom.net

Authentication REGISTER example:

<Info>REGISTER sip:as1.romtelecom.net SIP/2.0

From: <sip/tel:+40214999730@as1.romtelecom.net>;tag=as0c395baa

To: <sip:+40214999730@as1.romtelecom.net>

Authorization:Digestusername="+40214999730@as1.romtelecom.net",

realm="as1.romtelecom.net",nonce="4b0F+BpSoE4SX827prYWCQ==",

uri="sip:as1.romtelecom.net",response="a9a1fe821a3224749fa2a4e745751b7c"

(1 TR 114, RFC2616, RFC3261, RFC3325, RFC 3966 support TEL-URI, ETSI TS 183 007)

The FXS ports is mapped to the VoIP WAN Connection

WLAN IEEE 802.11b/802.11g/802.11n/802.11ac

WiFi Bands 5GHz ( 20/40/80 MHz) and 2.4GHz ( 20/40 MHz )

Authentication WiFi protected access (WPA) andWPA2

SSIDs Multiple service set identifiers (SSIDs)

Enable by default Yes

SSID 1 Private

SSID: Telekom-XXXXXX (XXXXXX = per device unique value with at least 6 randomly chosen

characters)

Encryption: WPA2 and the CCMP protocol (the key must have a length of 8 characters, consisting of

uppercase and lowercase letters, numbers).

Auto-channel selection

The SSIDs is mapped to the Internet WAN Connection

IGMP snooping

POTS

Configuration

Configuration

Wireless

LAN

ONT

© 2023 Normann Engineering GmbH • Linzer Str. 139 • A-4600 Wels • T +43 (0) 7242 70 921-0 • office@normann-engineering.com • Irrtum, Satz- und Druckfehler vorbehalten

USB Complying with the USB 2.0

ONT dimension 247mm*171mm*43mm

Weight <500g

Power adapter input: 100 V AC to 240 V AC, 50 Hz to 60 Hz

System power supply: 11 V DC to 13 V DC, 2 A

Power

Supply Static Power Consumption:7.5W

Average Power Consumption:10W

Maximum Power Consumption:18W

Ambient

Operation

Temperature 0~45 C degrees

Storage

Temperature -10~60?
