ALOSAT GD5904 4Port 10/100/1000 Yönetilemez 2 SFP (1GB) Endüstriyel Tip (-30°C+75°C) (4 Port Poe+) Power Supply: DC 12-52V

ALOSAT GD5904 4Port 10/100/1000 Yönetilemez 2 SFP (1GB) Endüstriyel Tip (-30°C+75°C) (4 Port Poe+) Power Supply: DC 12-52V
4X1000 LİK ETHERNET PORT + 2X1000 LİK SFP PORT ENDÜSTRİYEL POE SWITCH

?Adopt high-quality optoelectronic integrated modules to provide good optical and electrical characteristics
?Ensure reliable data transmission and long working life
?Supports full-duplex or half-duplex mode with auto-negotiation capability
?The network port supports fully automatic cross-recognition
?Built-in store-and-forward mechanism, supports multiple protocols
?Meet industrial-grade operation standards, with an average trouble-free working time of more than 300,000 hours
?Working power supply: DC 12-52V with reverse connection protection
?Lightning surge protection (power supply): 5000A (8/20µs)
?Use SFP fiber interface


? Product Description

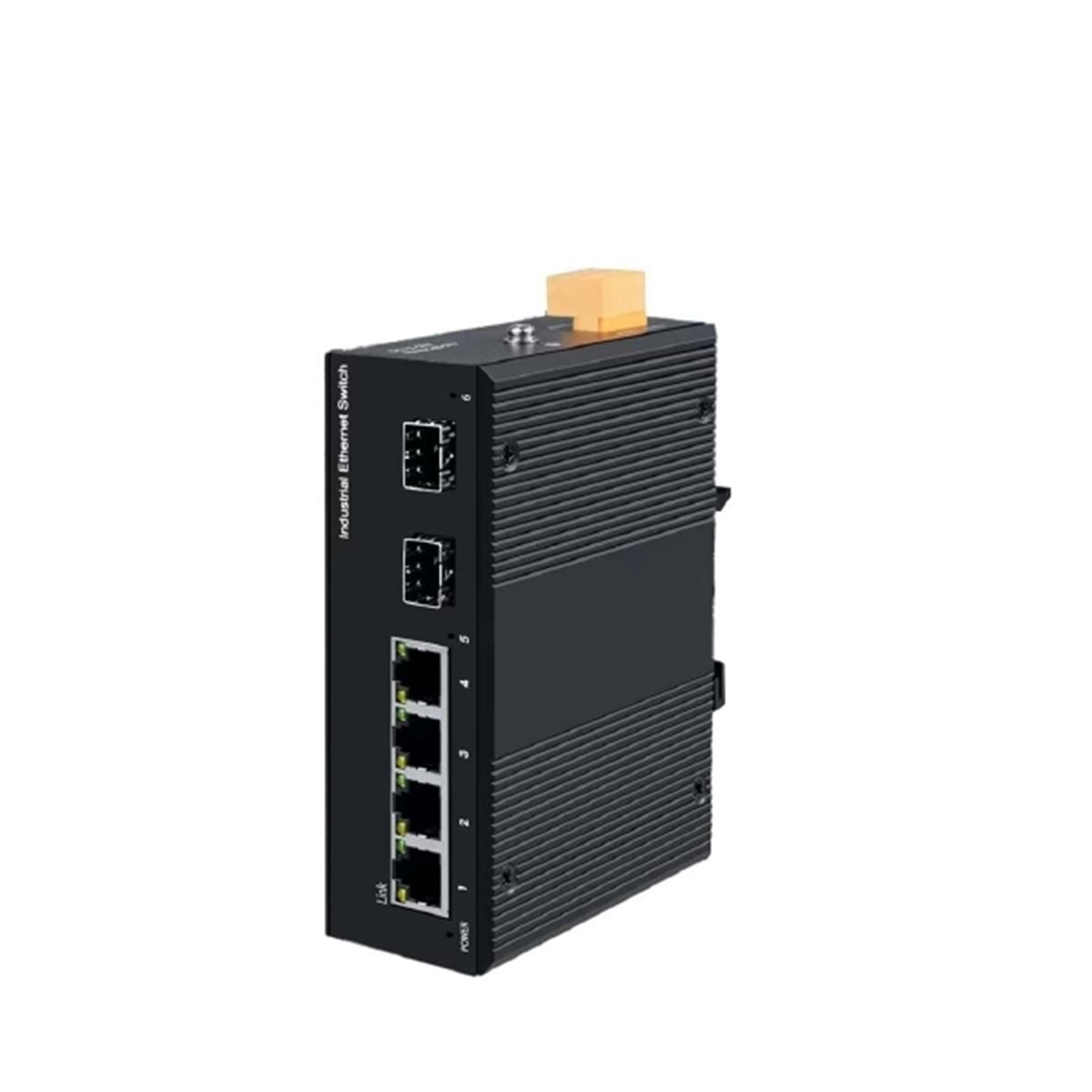

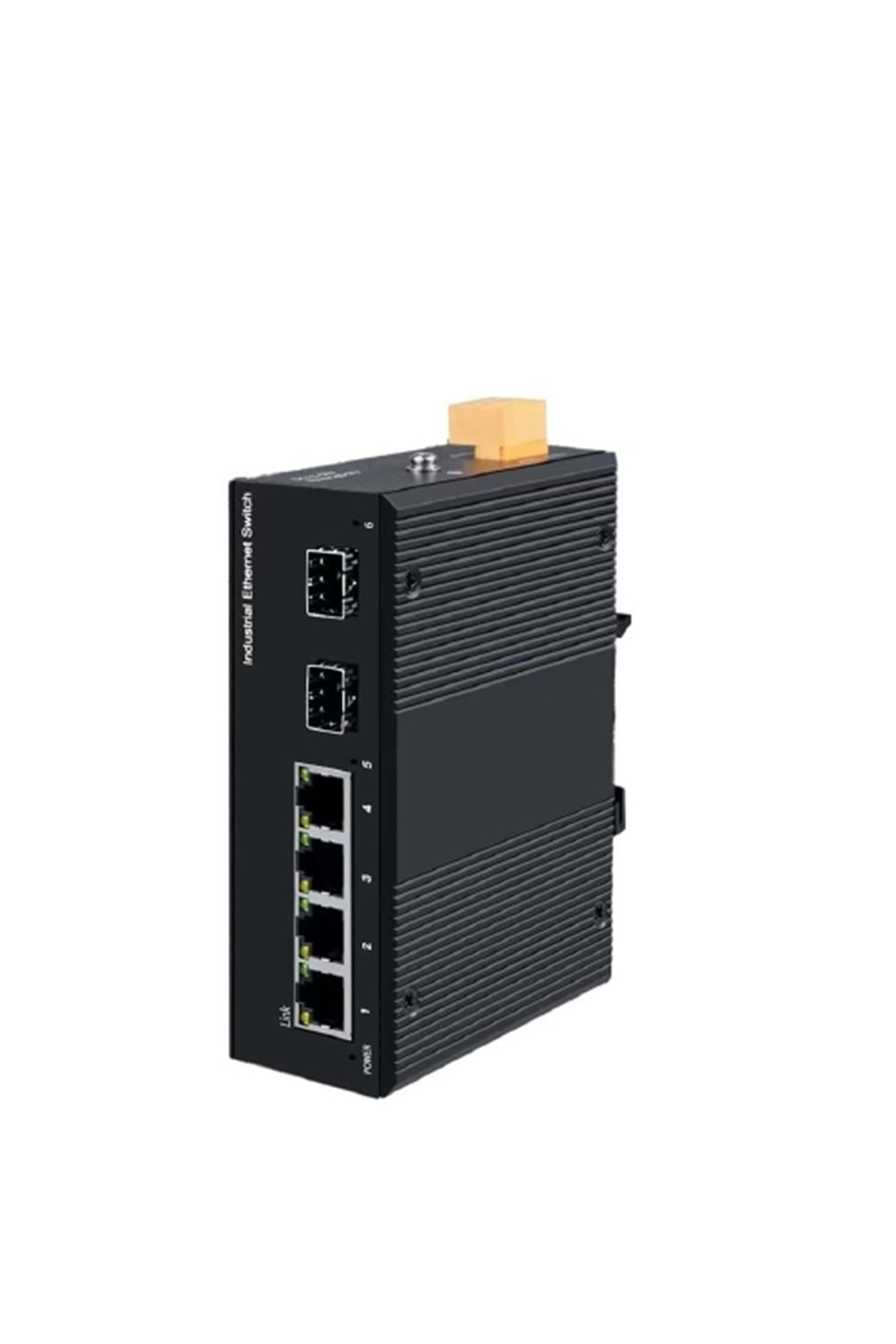

Four ports Gigabit electrical port and two ports Gigabit FX optical port industrial Ethernet switch, supporting four 100Base-T/1000Base-TX electrical ports and two 1000Base-X optical ports. The FF-K42 switch has an operating temperature of -30?~75? and is extremely rugged and can adapt to various harsh environments, it can be easily placed in a compact control box. Guide rail installation features, wide temperature operation, IP40 protection grade housing and LED indicator, makes FF-K42 a plug-and-play industrial-grade device, providing a reliable and convenient solution for users' Ethernet device networking.

? Product Specifications
Product name:
Gigabit 2 optical 4 electrical industrial Ethernet switch
Product Model:
FF-K42
Product Description:
Four ports Gigabit Ethernet switch with two Gigabit optical ports
Port Description:
Four RJ45 ports and two fiber optic ports
Fiber Optic Port:
1000BaseFX SFP port
RJ45 port:
10/100/1000BaseT(X) auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Network protocol:
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;
Working environment:
Working temperature:-30~75 °C
Storage temperature:-30~75 °C
Relative humidity:5%~95%(No condensation)

Industry Standard:
EMI :
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS :
IEC(EN)61000-4-2(ESD) : ±8kV Contact discharge,±12kV Air discharge
IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT): Power cable:±4kV;Data cable:±2kV
IEC(EN)61000-4-5(Surge) : Network port: ±4kV CM//±2kV DM ;
IEC(EN)61000-4-6(RF Conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz)
IEC(EN)61000-4-16(CM Conduction):30V cont. 300V,1s

Exchange properties:
Transmission mode: Store and forward MAC address: 2K
Cache: 1.2Mbit Backplane bandwidth: 12G
Switching delay: <10µs Power consumption: <3W

Power supply:
Input voltage: DC12-52V (dual power supply redundancy backup)
Access terminal: Phoenix terminal
Supports dual power supply redundancy
Supports reverse connection protection
Mechanical characteristics:
Housing: IP40 protection grade, metal housing
Installation: DIN rail, wall-mounted
Cooling method: natural cooling, no fan
Weight: 0.36Kg
Size: 152*125*45mm

LED indicators:
Power indicator: PWR
Interface indicator: Electrical port, optical port (Link/ACT)
Protection grade:
IP40
Mean time between failures:
300,000 hours
Warranty:
2 years
