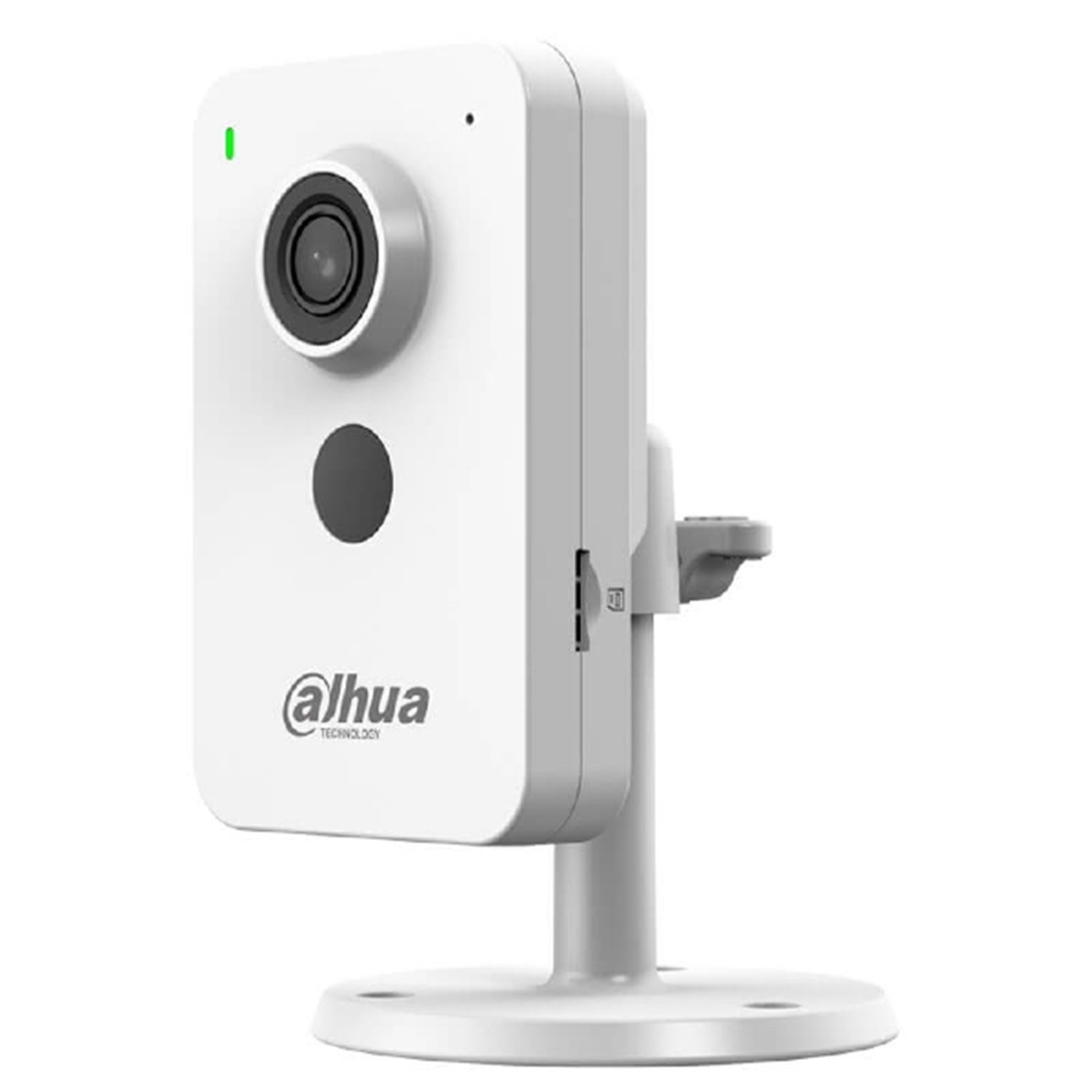

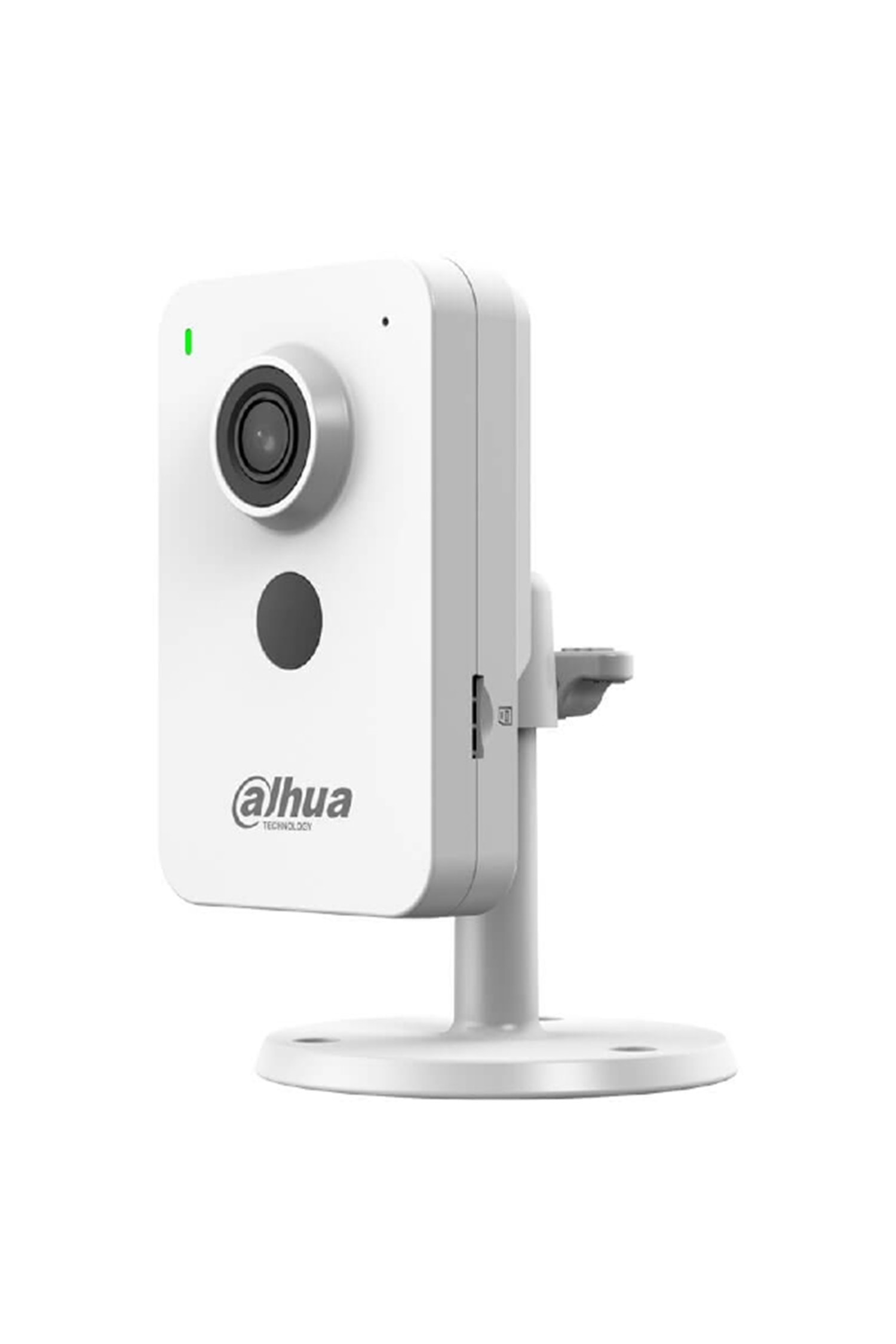

DAHUA C2K-P 2MP Compact Wi-Fi & PoE Camera Wi-Fi Sesli ip Küp Kamera

Camera

Image Sensor


1/2.7" CMOS

Max. Resolution


1920 (H) × 1080 (V)

Illumination Distance


Up to 30 m (98.43 ft) (IR)

Illuminator Number


1 (IR LED)

Angle Adjustment


Pan: 0° to 360°
Tilt: -10° to 100°

Lens Type


Fixed-focal

Focal Length


2.8 mm; 3.6 mm

Max. Aperture


F2.0

Field of View


2.8 mm: H: 101°; V: 54°; D: 119°
3.6 mm: H: 82°; V: 45°; D: 97°

Intelligence

Human Detection


Yes

Audio and Video

Video Compression


H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Video Frame Rate


Main stream: 1920 × 1080@(1-25/30 fps)
Sub stream: 640 × 360@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate


H.264: 24 kbps–6144 kbps
H.265: 9 kbps–6144 kbps

Day/Night


Auto(ICR)/Color/B/W

WDR


Yes

Motion Detection


OFF/ON (4 areas, rectangular)

Image Rotation


0°/180°

Built-in MIC


Yes, built-in Mic

Built-in Speaker


Yes, built-in speaker

Audio Compression


PCM; G.711a; G.711Mu

Network

Network Port


RJ-45 (10/100 Base-T)

Wi-Fi


IEEE 802.11b/g/n/ax 2.412–2.472 GHz, 2.4 G

Wi-Fi Pairing


Bluetooth pairing

Storage


Micro SD card (support max. 256 GB)

Management Software


Smart PSS Lite;DMSS

Mobile Client


iOS;Android

Function

Abnormal Sound Alarm


Yes

General

Certifications


CE

Power Supply


12 VDC/PoE

Power Consumption


Basic: 1.92 W (12 VDC); 2.81 W (PoE)
Max.: 4.14 W (12 VDC); 5.14 W (PoE)

Operating Temperature


–10 °C to +45 °C (+14 °F to +113 °F)

Operating Humidity


?95% (RH), non-condensing

Camera Button


Reset button

Casing Material


Plastic

Product Dimensions


64 mm × 100 mm × 34 mm (2.52" × 3.94" × 1.34") (L × W × H)

Net Weight


0.11 kg (0.24 lb)
